HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
64
4.2.1 Setting PTZ Presets, Patrols & Patterns
Before you start:
Make sure that the presets, patrols and patterns should be supported by PTZ protocols.
Customizing Presets
Purpose:
A preset is a predefined image position which contains information of pan, tilt, focus and other parameters.
You can customize the presets and the presets can be used with the event triggered action.
Steps:
1. Enter the PTZ Settings interface.
Menu> Camera >PTZ

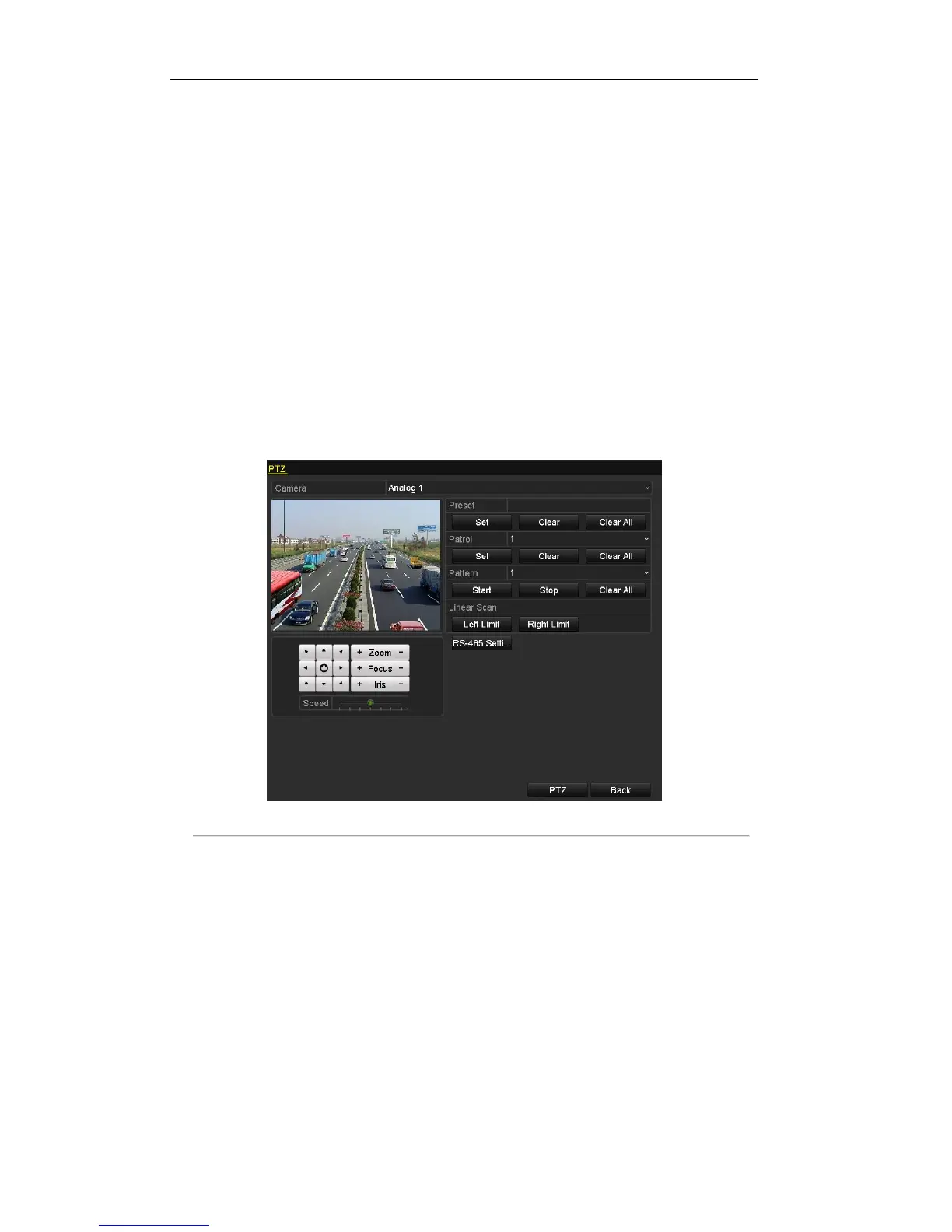

Figure 4. 17 PTZ Settings-Customize Preset
2. Select the camera for PTZ setting from the drop-down list.
3. Use the directional and zoom / focus / iris buttons on the PTZ control panel to steer the camera to the
desired view.
4. Input the preset No. (1~255) in the Preset text field, and then click the Set button under the Preset item
to save the preset.
5. Repeat the steps 3-4 to save more presets.
6. You can click the Clear button under the Preset item to clear the selected preset or click the Clear All
button to clear all the presets.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
