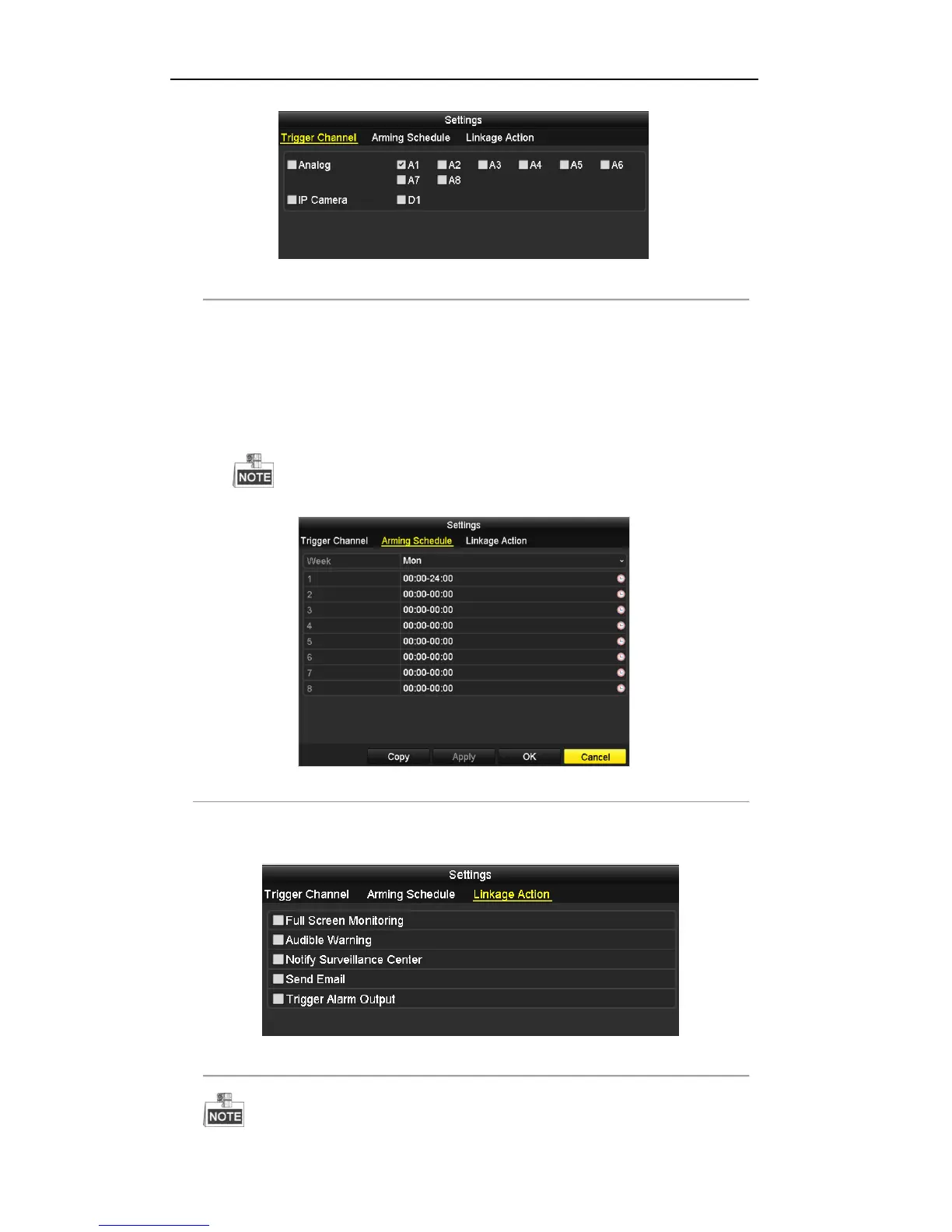

Figure 8. 3 Set Trigger Camera of Motion Detection
4. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the channel’s arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply to save the arming settings of the selected day.
4) Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy
button to copy an arming schedule to other days.
Time periods shall not be repeated or overlapped.
Figure 8. 4 Set Arming Schedule of Motion Detection
5. Click the Linkage Action tab to set up alarm response actions of motion alarm (please refer to Chapter
8.6).
Figure 8. 5 Set Alarm Response Actions of Motion Detection

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
