HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
131
Step 1 Go to Menu > Configuration > Exceptions.

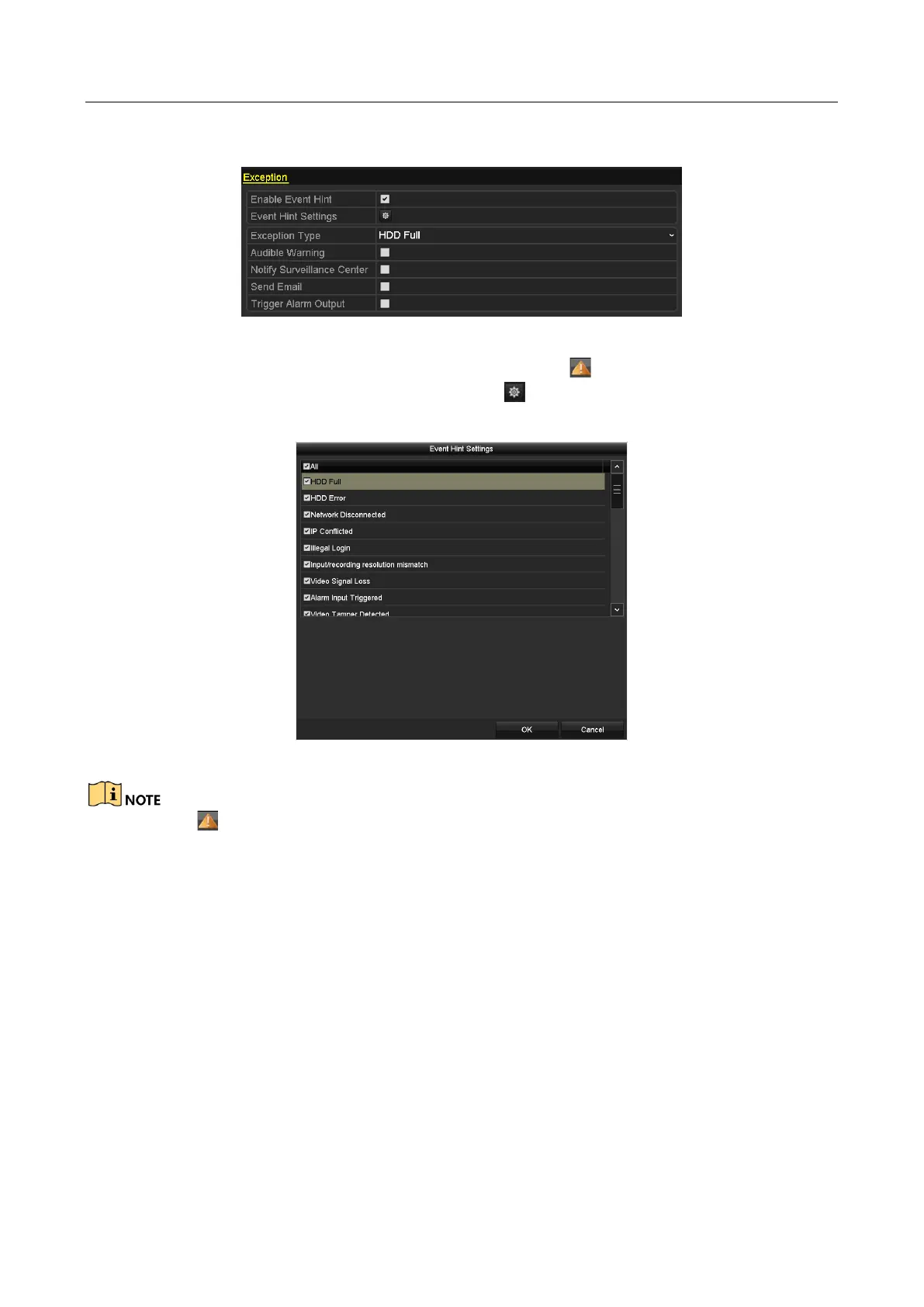

Figure 8-16 Exception Settings Interface
Step 2 Check the checkbox of Enable Event Hint to display the (Event/Exception icon) when
an exceptional event occurs. And click the icon to select the detailed event hint for
display.
Figure 8-17 Event Hint Settings
Click the icon appears in the live view interface, and you can view the detailed information of
the exceptional event. Click the button Set, and then you can select the detailed event hint for
display.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
