HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
45

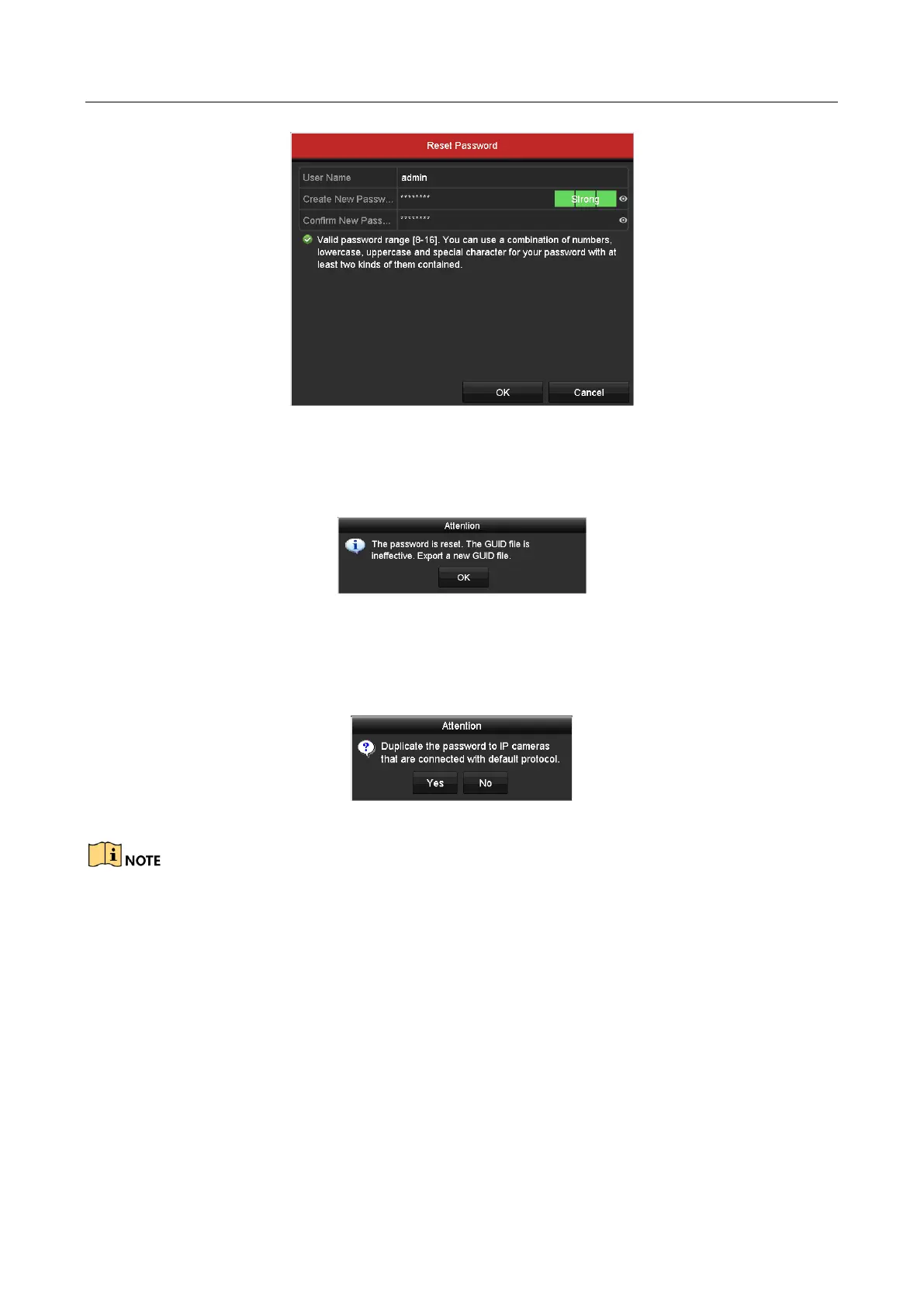

Figure 2-31 Reset Password
Step 3 Input the new password and confirm the password.
Step 4 Click OK to save the new password. Then the Attention box pops up as shown below.
Figure 2-32 GUID File Imported
Step 5 Click OK and the Attention box as below pops up to remind you to duplicate the password of
the device to IP cameras that are connected with default protocol. Click Yes to duplicate the
password or No to cancel it.
Figure 2-33 Duplicate the Password

If you want to retrieve the password when you forget it, you must export the GUID file first.

Once the password is reset, the GUID file will be invalid. You can export a new GUID file.
Refer to Chapter 17.5.3 Editing a User for reference.
2.7 Adding and Connecting the IP Cameras
2.7.1 Activating the IP Camera
Purpose
Before adding the camera, make sure the IP camera to be added is in active status.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
