HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
44
Step 1 Go to Menu > Shutdown.

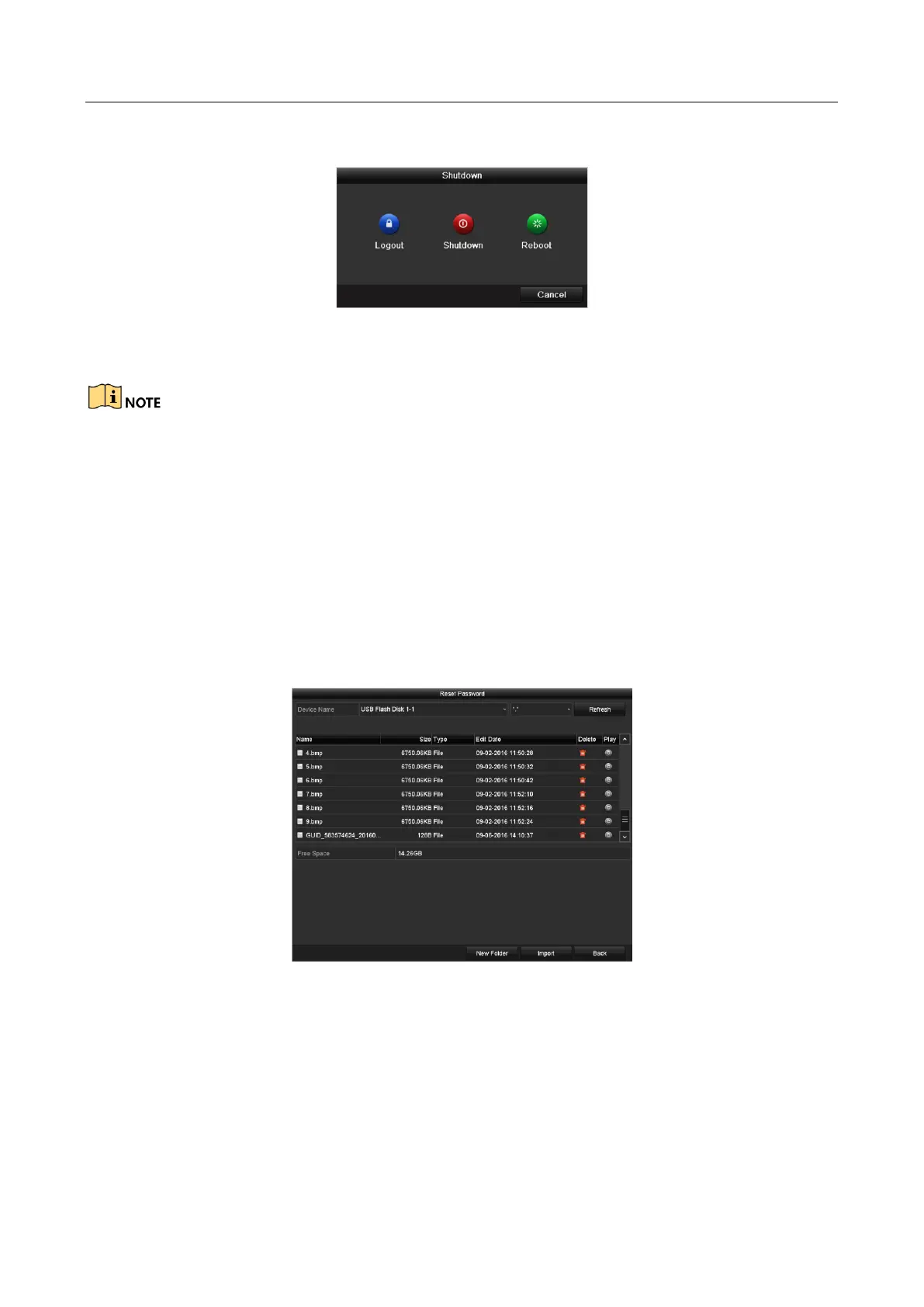

Figure 2-29 Logout
Step 2 Click Logout.
After you have logged out of the system, menu operation on the screen is invalid. It is required to
input a user name and password to unlock the system.
2.6 Resetting Your Password
Purpose
When you forget the password of the admin, you can reset the password by importing the GUID
file. The GUID file must be exported and saved in the local USB flash drive after you have activated
the device (refer to Chapter 2.2 Activating the Device).
Step 1 On the user login interface, click Forget Password to enter the Import GUID interface.
Figure 2-30 Import GUID
Step 2 Select the GUID file from the USB flash drive and click Import button to pop up the Reset
Password interface.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
