HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
43
2.5 Login and Logout
2.5.1 User Login
Purpose
You have to log in to the device before operating the menu and other functions
Step 1 Select the User Name in the drop-down list.

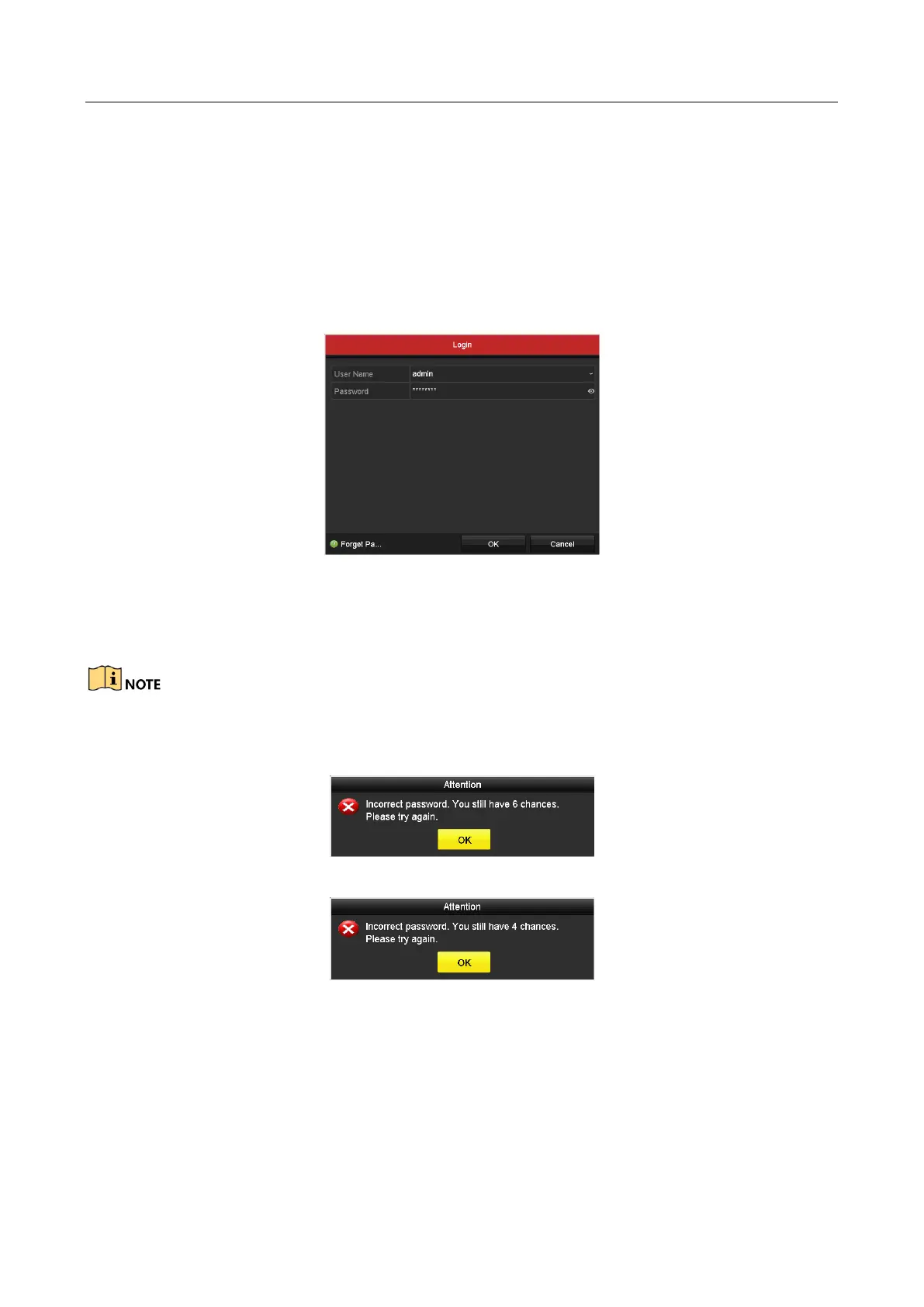

Figure 2-26 Login Interface
Step 2 Input the Password.
Step 3 Click OK to log in.
In the Login interface, for the admin, if you have entered the wrong password for 7 times, the
account will be locked for 60 seconds. For the operator, if you have entered the wrong password
for 5 times, the account will be locked for 60 seconds.
Figure 2-27 User Account Protection for the Admin
Figure 2-28 User Account Protection for the Operator
2.5.2 User Logout
Purpose
After logging out, the monitor turns to the live view mode and if you want to perform some
operations, you need to enter the user name and password to log in again.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
