HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
187

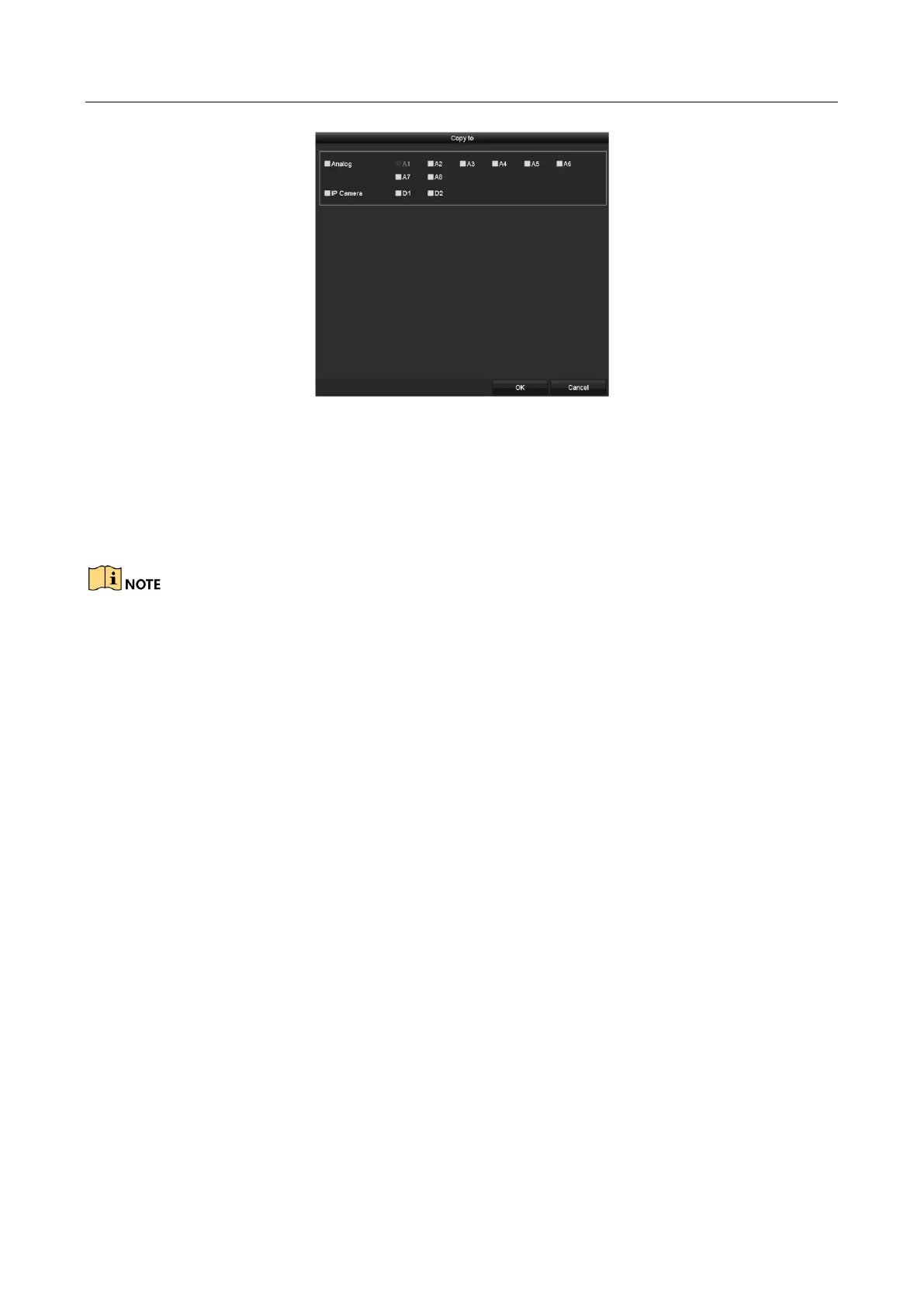

Figure 13-17 Copy Settings to Other Camera(s)
Step 6 Select the camera (s) to be configured with the same quota settings. You can also click the
checkbox of Analog to select all cameras.
Step 7 Click the OK button to finish the Copy settings and back to the Storage Mode interface.
Step 8 Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record.
13.5 Configuring Cloud Storage
Purpose
The cloud storage facilitates you to upload and download the recorded files at any time and any
place, which can highly enhance the efficiency.
Step 1 Go to Menu > HDD > General > Cloud Storage.
Step 2 Check the Enable Cloud checkbox to enable the feature.
Step 3 Select the Cloud Type from the drop-down list to One Drive, Google Drive or Drop Box.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
