HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
188

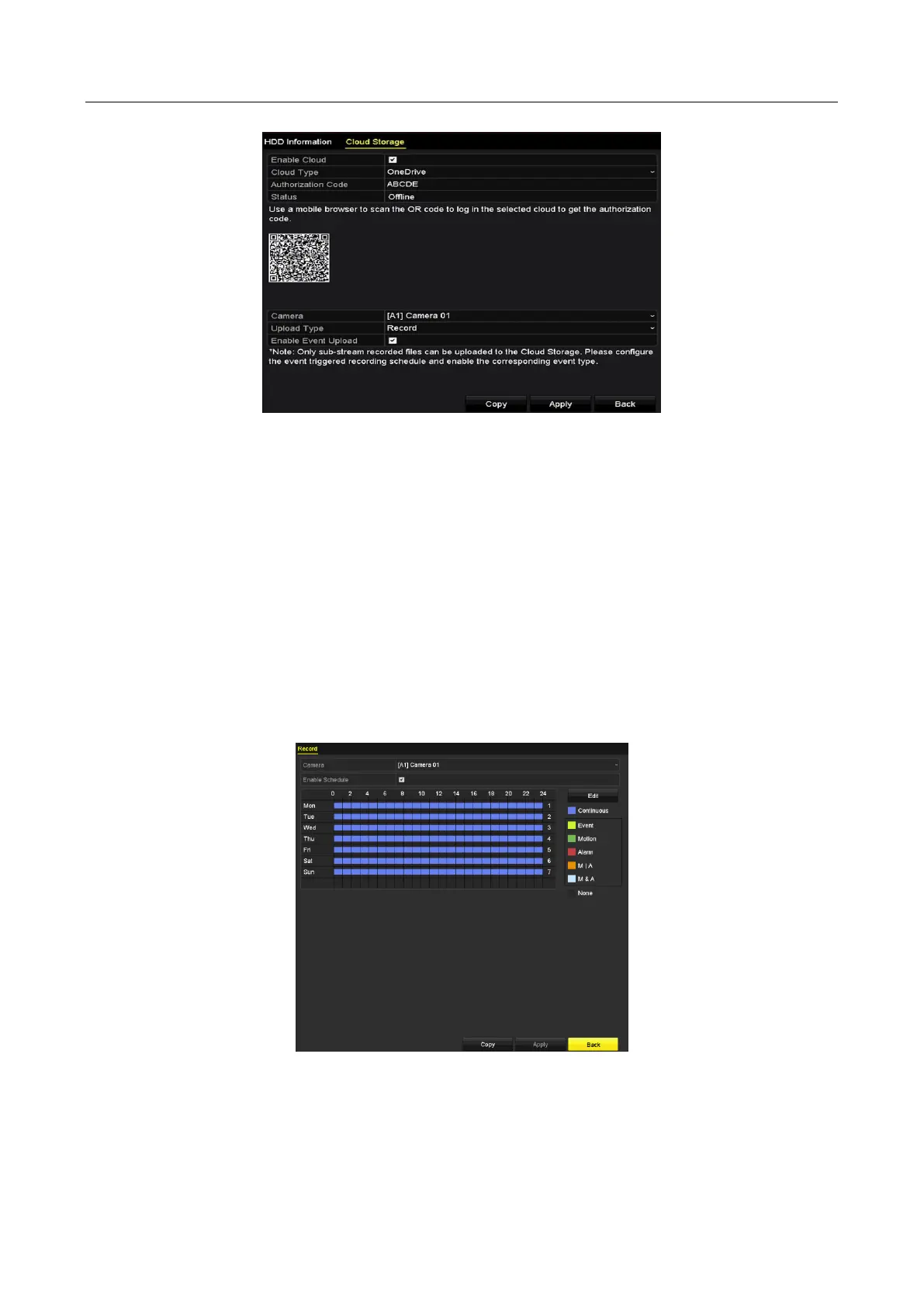

Figure 13-18 Cloud Storage Interface
Step 4 According to the prompts, you are required to use a mobile browser to scan the QR code to
log in the selected cloud to get the authentication code. And then copy the authentication
code to the Authentication Code text filed.
Step 5 Click Apply and then back to the main menu.
Step 6 Enter the cloud storage interface again about 20s later. When the Status shows online, it
indicates the successful registration.
Step 7 Configure the recording schedule.
Back to enter the record interface, choose a certain camera from the Camera drop-down
list and check the Enable Schedule checkbox to enable the schedule recording. For detailed
recording schedule, refer to 5.2 Configuring Recording Schedule.
Figure 13-19 Record Schedule
Step 8 Upload the event triggered recording files to the cloud storage.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
