HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
140
You can adjust the size and position of textbox on the live view screen of POS settings interface by
dragging the frame.
Step 8 Click Apply to activate the settings.
Step 9 (Optional) You can click the Copy button to copy the current settings to other POS (s).

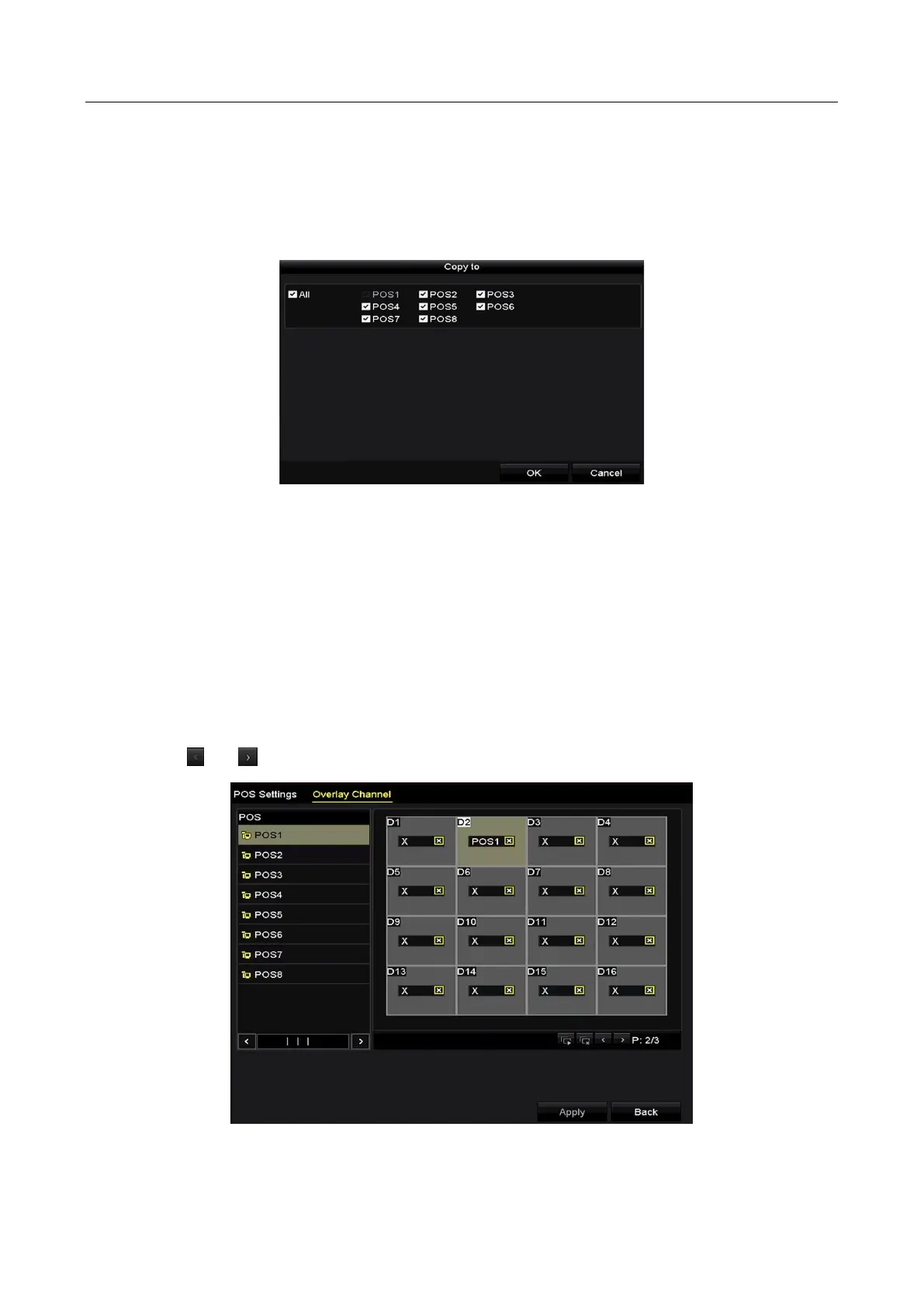

Figure 9-13 Copy POS Settings
9.2 Configuring Overlay Channel
Purpose
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Go to Menu > Configuration > POS > Overlay Channel.
Step 2 Click to select an analog or IP camera from the camera list on the right, and then click a POS
item from the POS list you want to overlay on the selected camera.
Click or to go to the previous or next page of cameras.
Figure 9-14 Overlay Channel Settings

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
