HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
52

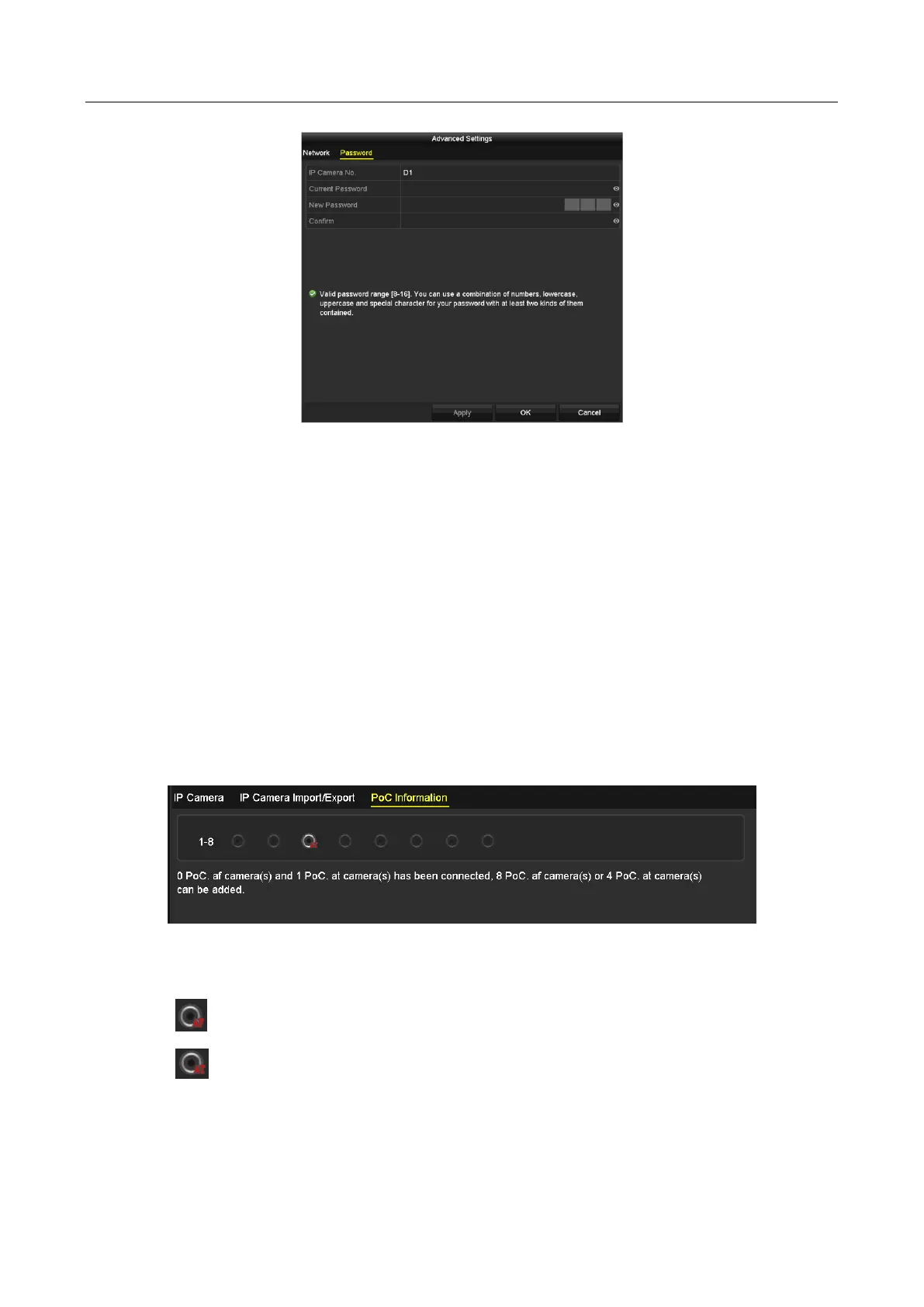

Figure 2-43 Password Configuration of the Camera
Step 5 Click OK to save the settings and exit the interface.
2.8 Connecting PoC Cameras
Purpose
-K/P series DVR support PoC (Power over Coaxitron) cameras connection. DVR will detect the
connected PoC cameras automatically, manage the power consumption via the coaxial
communication, and provide power to the cameras via coaxitron.
Before you start
Connect the PoC camera to the DVR.
Step 1 Go to Menu > Camera > PoC Information.
Figure 2-44 PoC Information
Step 2 Check the status of connected PoC camera.
 : When the PoC camera is connected to the DVR, the default status is AF.
 : If the connected PoC camera supports AT mode and the power of the DVR PoC
module is enough, the DVR will switch the default AF mode to AT mode.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
