HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
201

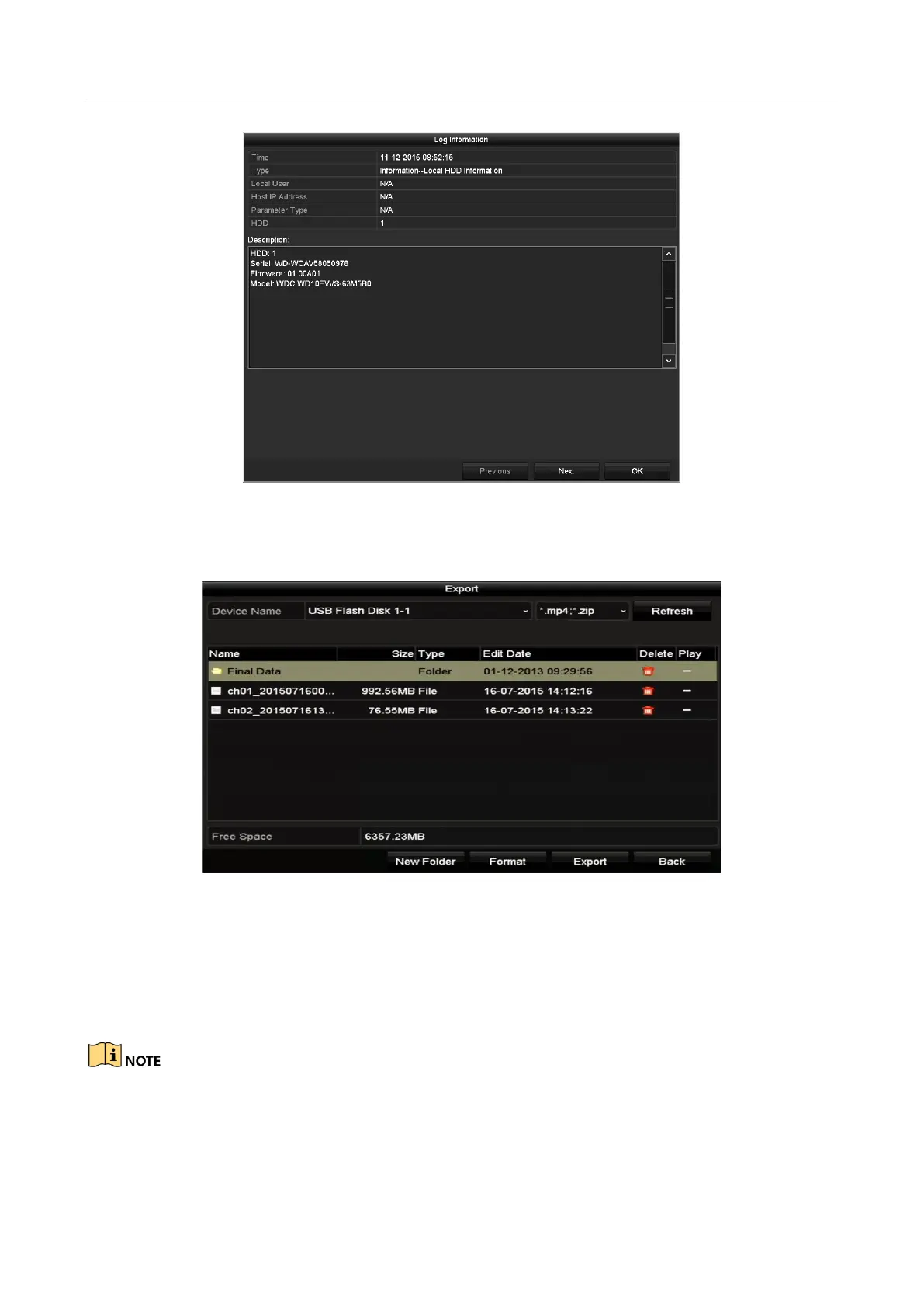

Figure 15-4 Log Information Interface
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown below.
Figure 15-5 Export Log Files
Step 7 Select the backup device from the drop-down list of Device Name.
Step 8 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.

Please connect the backup device to DVR before operating log export.

The log files exported to the backup device are named by exporting time, e.g.,
20110514124841logBack.txt.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
