HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
208
 Enhanced VCA Mode: For DS-7200HUHI series DVR, the enhanced VCA mode conflicts with
the 2K/4K output and 4 MP/5 MP signal input. You can enable or disable VCA mode.
Enable Enhanced VCA Mode
1) Check the checkbox to enable enhanced VCA mode.
2) Click Apply and the attention box pops up as below.

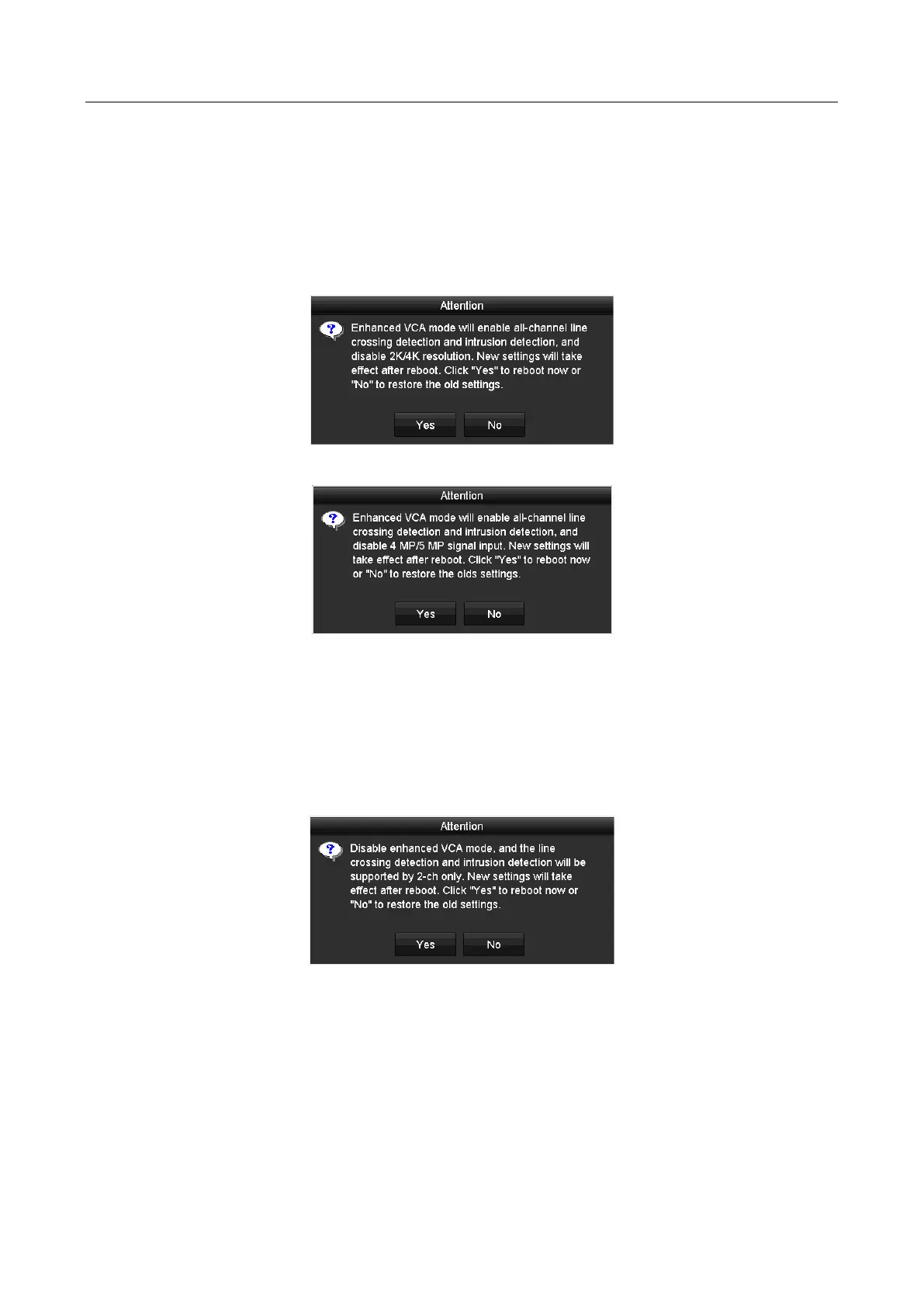

Figure 16-4 Enable Enhanced VCA Mode (1)
Figure 16-5 Enable Enhanced VCA Mode (2)
3) Click Yes to apply the function and reboot the device.
Disable Enhanced VCA Mode
1) Uncheck the checkbox to disable enhanced VCA mode.
2) Click Apply and the attention box pops up as below.
Figure 16-6 Disable Enhanced VCA Mode (1)

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
