HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
37

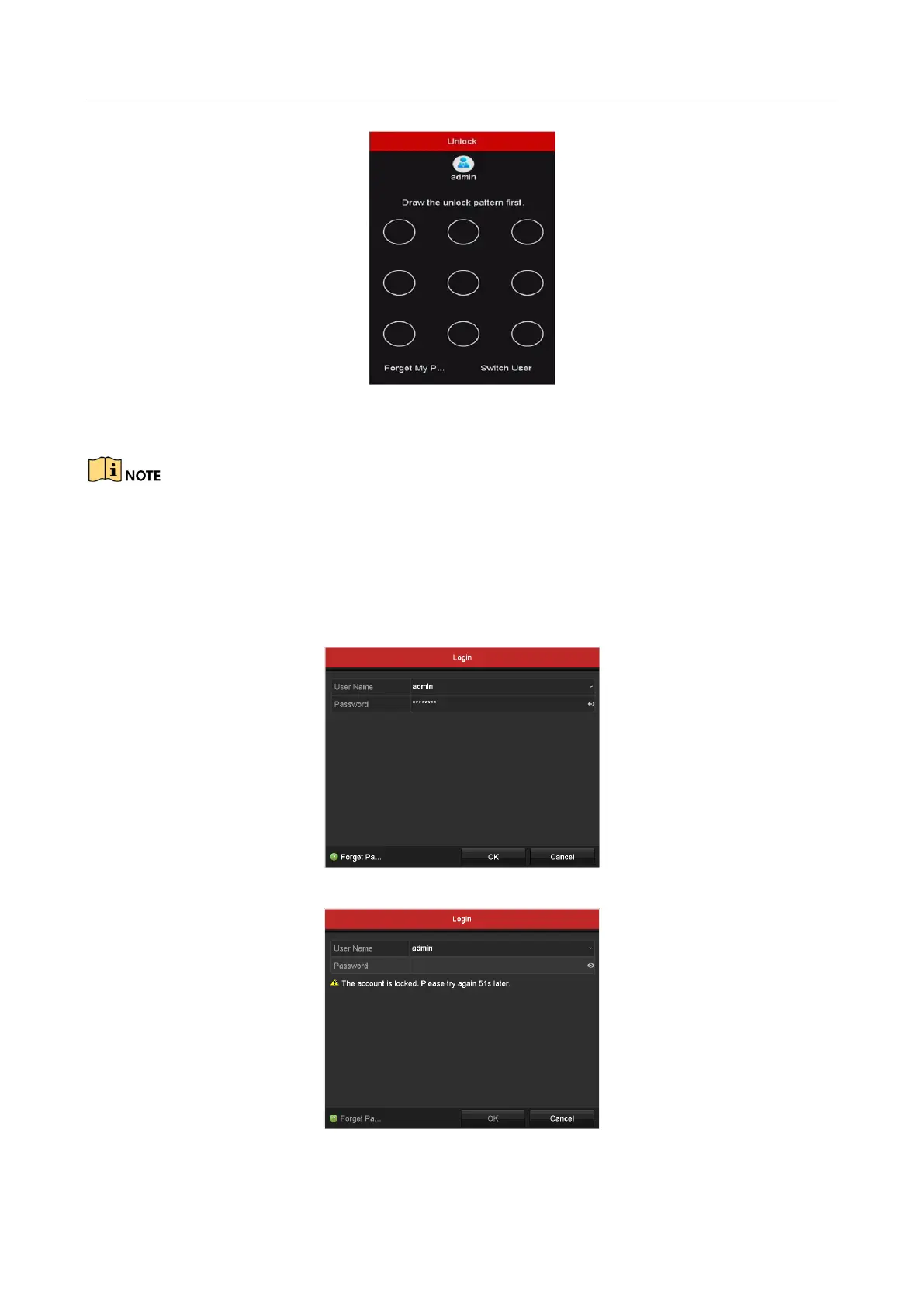

Figure 2-12 Draw the Unlock Pattern
Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.

You can right click the mouse to log in via the normal mode.

If you have forgotten your pattern, you can select the Forget My Pattern or Switch User
option to enter the normal login dialog box.

When the pattern you draw is different from the pattern you have configured, you should
try again.

If you have drawn the wrong pattern for 7 times, the account will be locked for 1 minute.
Figure 2-13 Normal Login Dialog Box
Figure 2-14 Lock the Account

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
