HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
39
3) (Optional) Check the checkbox of Enable Pattern Unlock and draw the unlock pattern.
Or click of Draw Unlock Pattern to change the pattern. Refer to Chapter 2.3 Using
the Unlock Pattern for Login for reference.
4) (Optional) Click of Export GUID to export GUID to the connected USB flash drive
for resetting password. Refer to Chapter 17.5.3 Editing a User for reference.

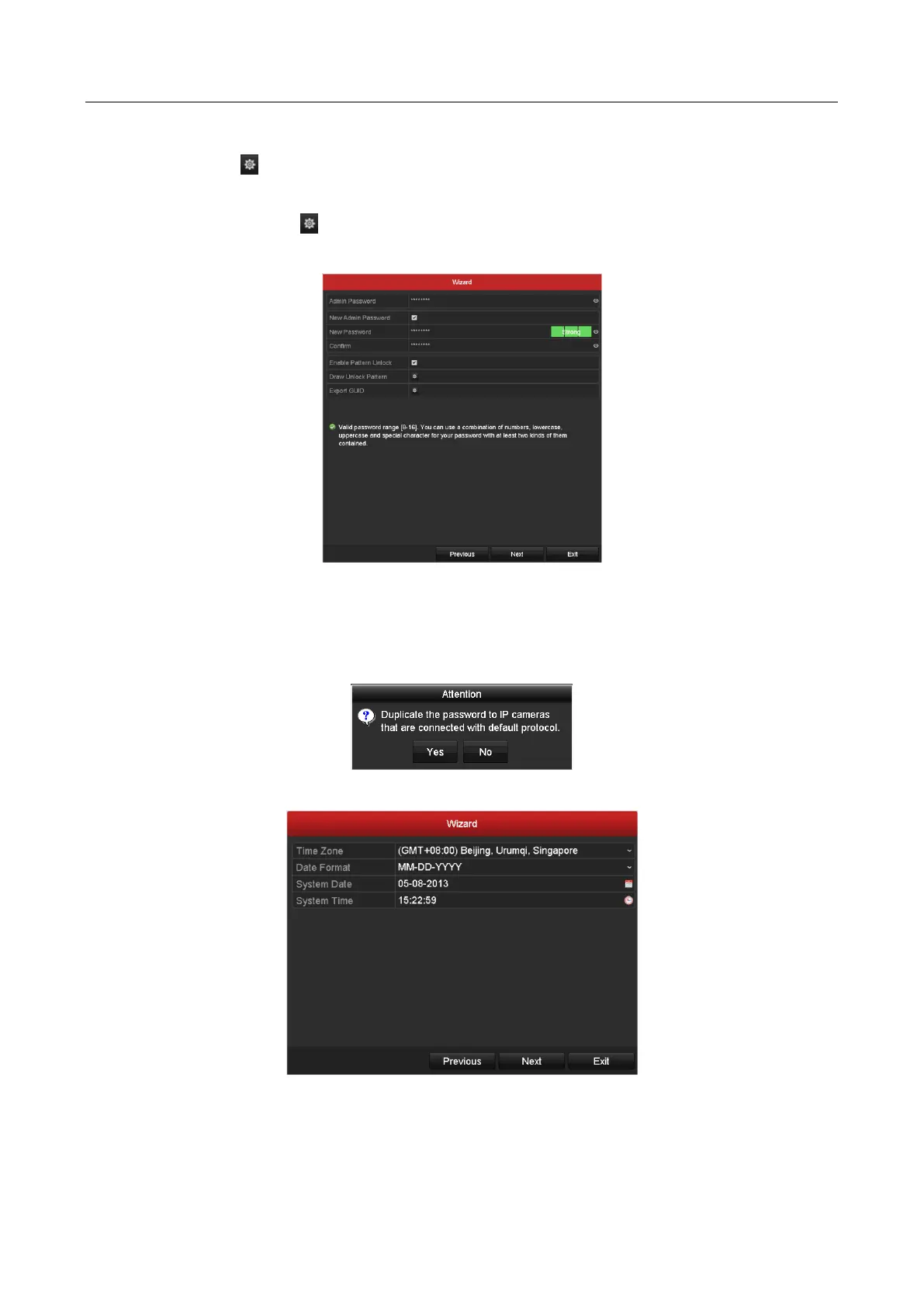

Figure 2-17 Change the Password
Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the
password of the device to IP cameras that are connected with default protocol. Or click No
to enter the Date and Time Settings interface.
Figure 2-18 Duplicate the Password
Figure 2-19 Date and Time Settings

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
