HIKVISION DS-7208HUHI-K2/P User Manual

Digital Video Recorder User Manual
91
You must set the Storage mode in the HDD advanced settings to Group before you set the HDD
property to Redundant. For detailed information, please refer to Chapter 13.3 Managing HDD
Group. There should be at least another HDD which is in Read/Write status.
Step 1 Go to Menu > HDD.

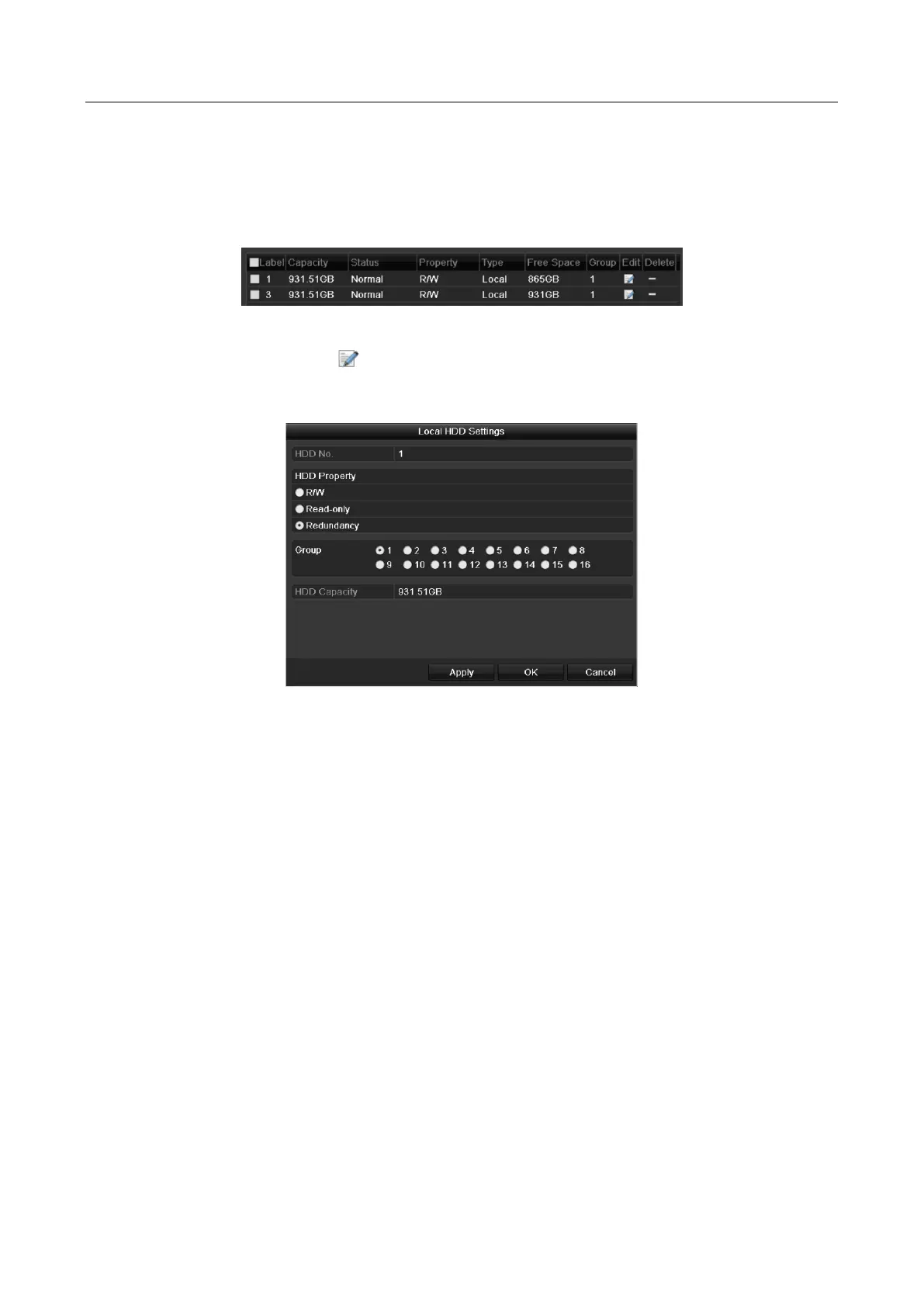

Figure 5-25 HDD General
Step 2 Select the HDD and click to enter the Local HDD Settings interface.
1) Set the HDD property to Redundant.
Figure 5-26 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Step 3 Go to Menu > Record > Parameters > Record.
1) Select Camera you want to configure.
2) Click More Settings button.

HIKVISION DS-7208HUHI-K2/P Specifications

General

Bit rate	64 Kbit/s
Audio system	2-way
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	8 channels
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	1
Number of users	64 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	SATA
Maximum HDD capacity	10000 GB
Number of HDDs supported	2
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	48 V
Power consumption (typical)	60 W

Weight and Dimensions

Depth	320 mm
Height	48 mm
Weight	2000 g
