Network Video Recorder User Manual
128

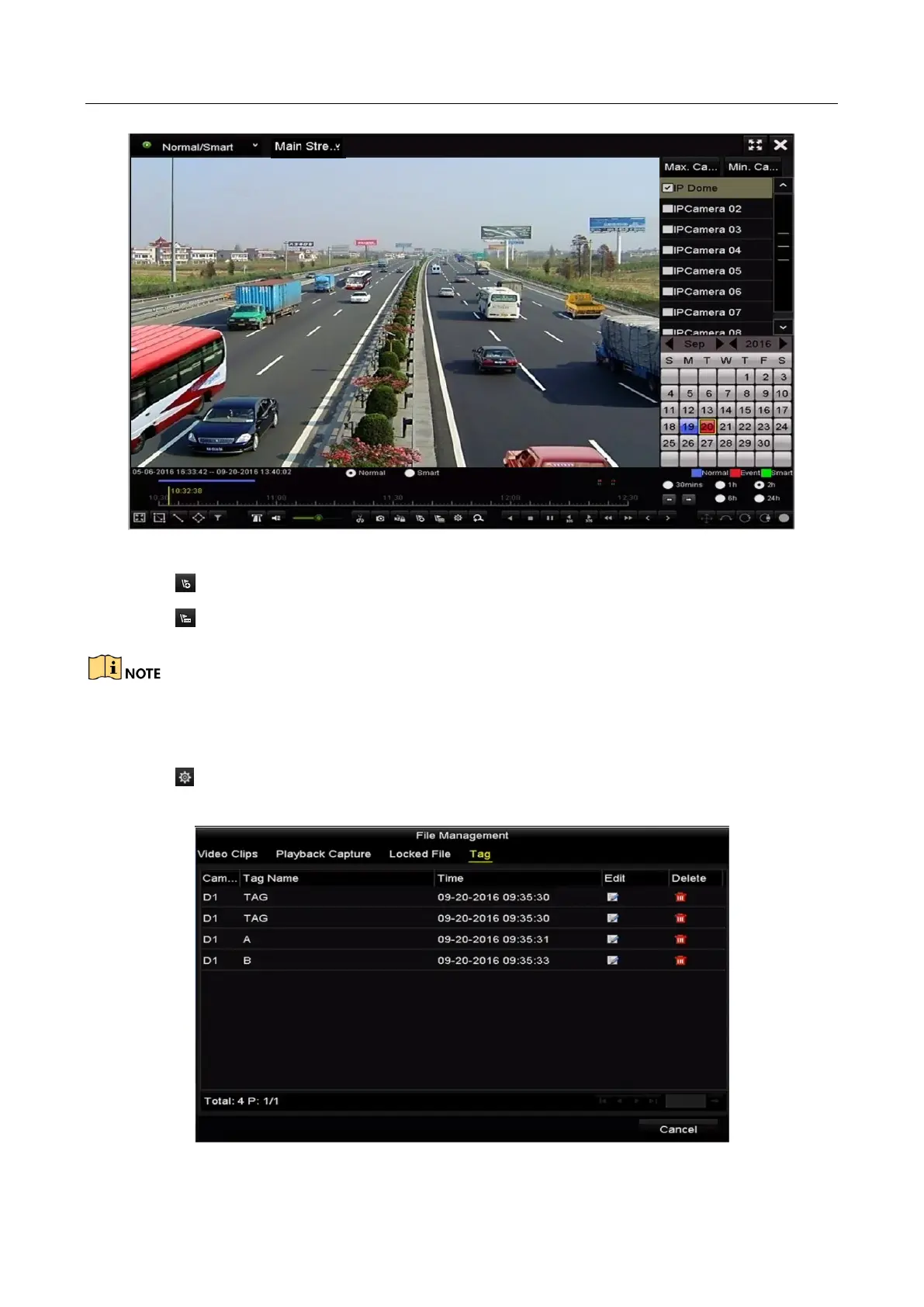

Figure 6-12 Interface of Playback by Time
Click button to add default tag.
Click button to add customized tag and input tag name.
Max. 64 tags can be added to a single video file.
Step 3 Tag management.
Click button to enter the File Management interface and click Tag to manage the tags.
You can check, edit, and delete tag(s).
Figure 6-13 Tag Management Interface

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
