HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
223

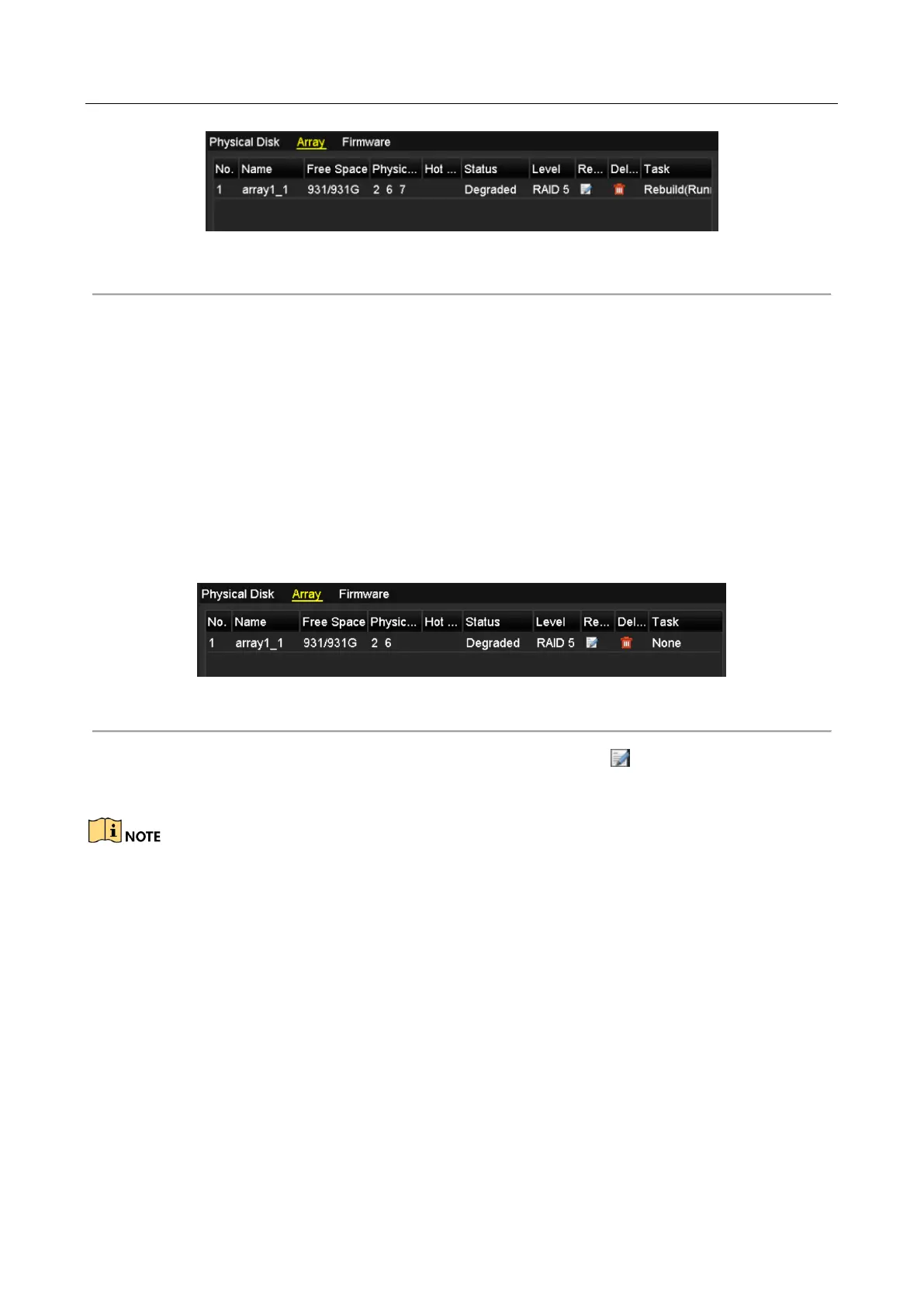

Figure 1. 2 Array Settings Interface
If there is no hot spare disk after rebuilding, it is recommended to install a HDD into the device and
set is as a hot spare disk to ensure the high security and reliability of the array.
13.2.3 Manually Rebuilding Array
Purpose:
If the hot spare disk has not been configured, you can rebuild the array manually to restore the
array when the virtual disk is in Degraded status.
Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array
Figure 13-11 Array Settings Interface
Step 2 Click Array tab to back to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
