HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
218

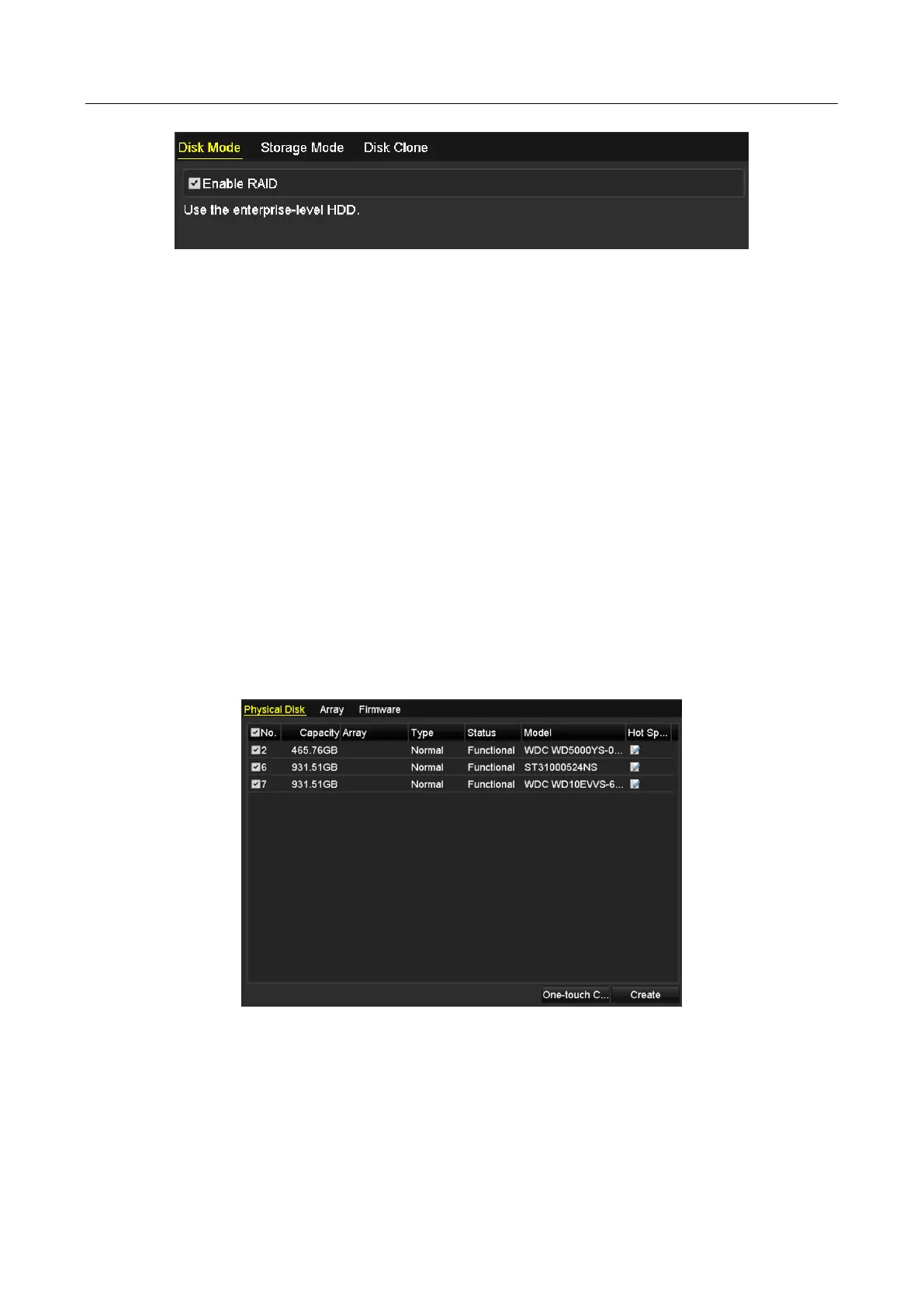

Figure 13-2 Enable RAID Interface
Step 2 Check the checkbox of Enable RAID.
Step 3 Click the Apply button to save the settings.
13.1.3 One-touch Configuration
Purpose:
Through one-touch configuration, you can quickly create the disk array. By default, the array type
to be created is RAID 5.
Before you start:
 The RAID function should be enabled, please refer to the Chapter 13.1.1 for details.
 As the default array type is RAID 5, please install at least 3 HDDs in you device.
 If more than 10 HDDs are installed, 2 arrays can be configured.
Step 1 Enter the RAID configuration interface.
Menu > HDD > RAID
Figure 13-3 Physical Disk Interface
Step 2 Check the checkbox of corresponding HDD No. to select it.
Step 3 Click the One-touch Create button to enter the One-touch Array Configuration interface.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
