HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
190

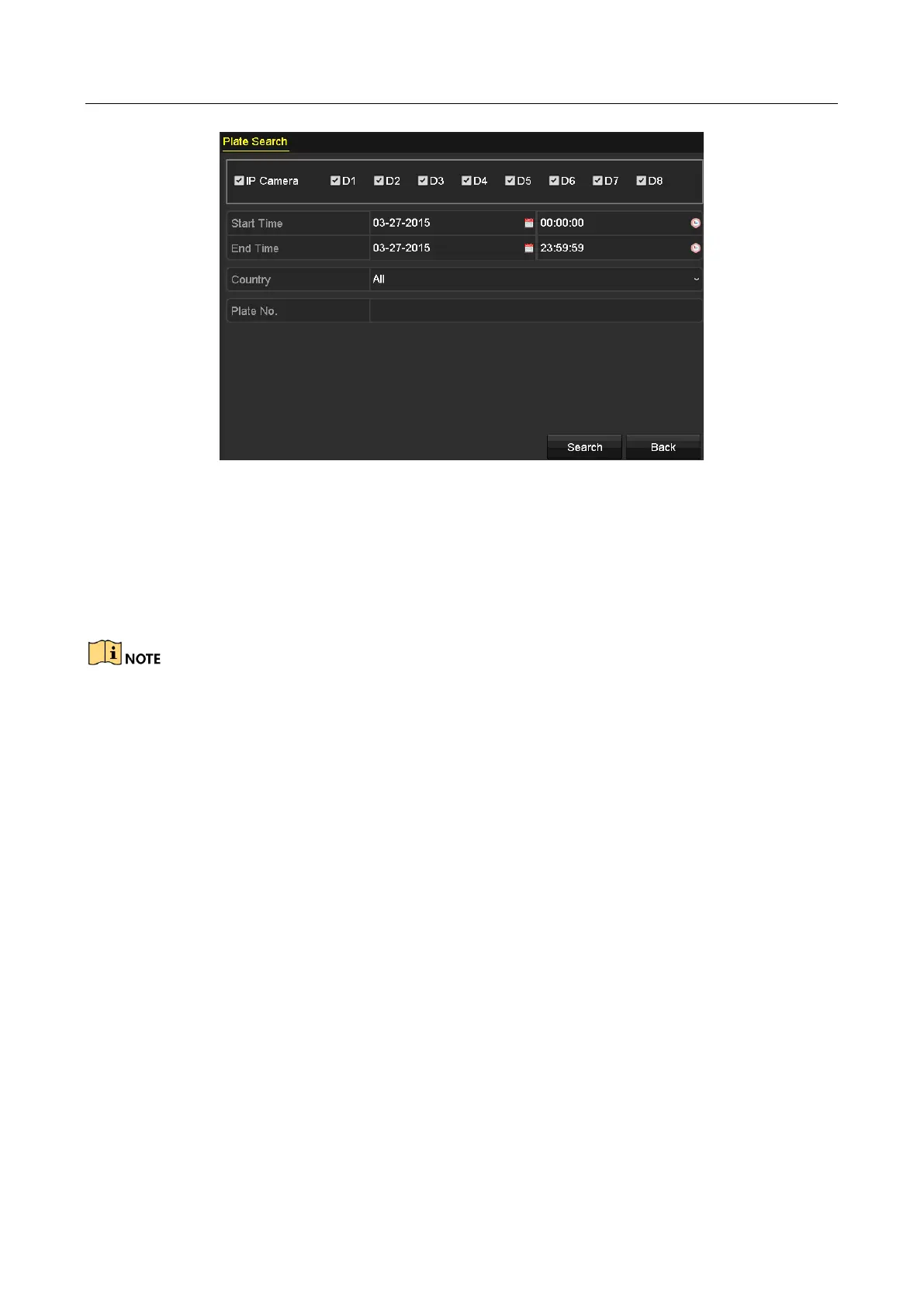

Figure 11-6 Plate Search
Step 4 Select the country from the drop-down list for searching the location of the vehicle plate.
Step 5 Input the plate No. in the field for search.
Step 6 Click Search to start searching. The search results of detected vehicle plate pictures are
displayed in list or in chart.
Please refer to the Step7-Step8 of Section 10.1 Face Search for the operation of the search results.
11.4 People Counting
Purpose:
The Counting is used to calculate the number of people entered or left a certain configured area
and form in daily/weekly/monthly/annual reports for analysis.
Step 1 Enter the Counting interface.
Step 2 Menu>VCA Search>Counting
Step 3 Select the camera for the people counting.
Step 4 Select the report type to Daily Report, Weekly Report, Monthly Report or Annual Report.
Step 5 Set the statistics time.
Step 6 Click the Counting button to start people counting statistics.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
