17.4 Configuring More Settings
Step 1 Enter the General Settings interface.
Menu >Configuration>General
Step 2 Click the More Settings tab to enter the More Settings interface.

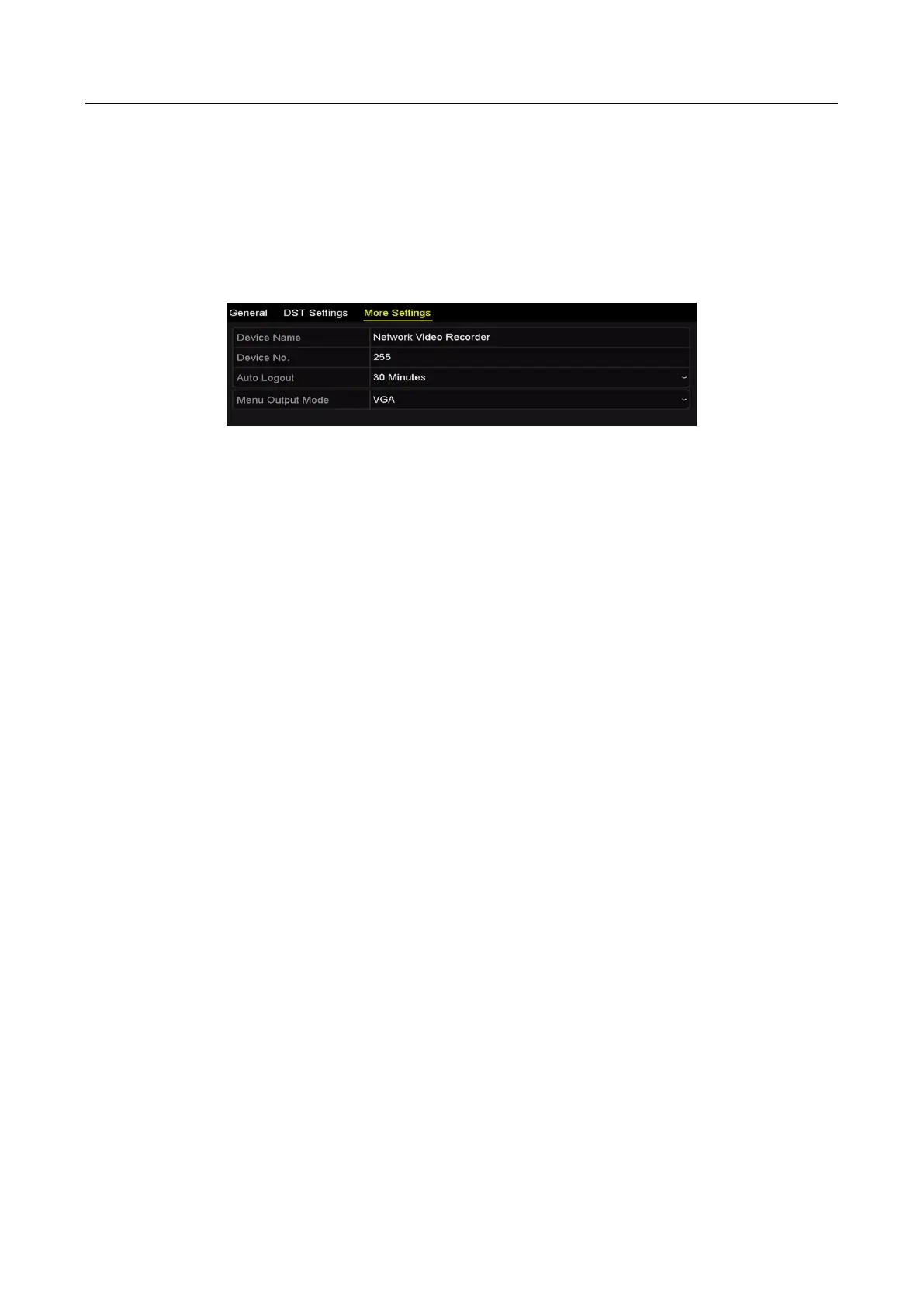

Figure 17-5 More Settings Interface
Step 3 Configure the following settings:
Device Name: Edit the name of NVR.
Device No.: Edit the serial number of NVR. The Device No. can be set in the range of 1~255,
and the default No. is 255. The number is used for the remote and keyboard control.
Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen after
5 minutes of menu inactivity.
Enable HDMI/VGA Simultaneous Output (for DS-9600NI and DS-8600NI only): By default,
the video outputs from HDMI and VGA interfaces can be operated separately. You can set the
simultaneous output for the HDMI and VGA by checking the checkbox of the option.
Menu Output Mode: You can choose the menu display on different video output.
For the DS-9600NI and DS-8600NI series NVR, you can select the menu output mode to
VGA/HDMI, VGA2/HDMI2.
And for the DS-7600NI and DS-7600NI series NVR, you can select the menu output mode to
VGA, HDMI or Auto. When the Auto option is selected and both HDMI and VGA outputs are
connected, the device will detect and set the HDMI as the menu output.
Step 4 Click the Apply button to save the settings.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
