Network Video Recorder User Manual
50

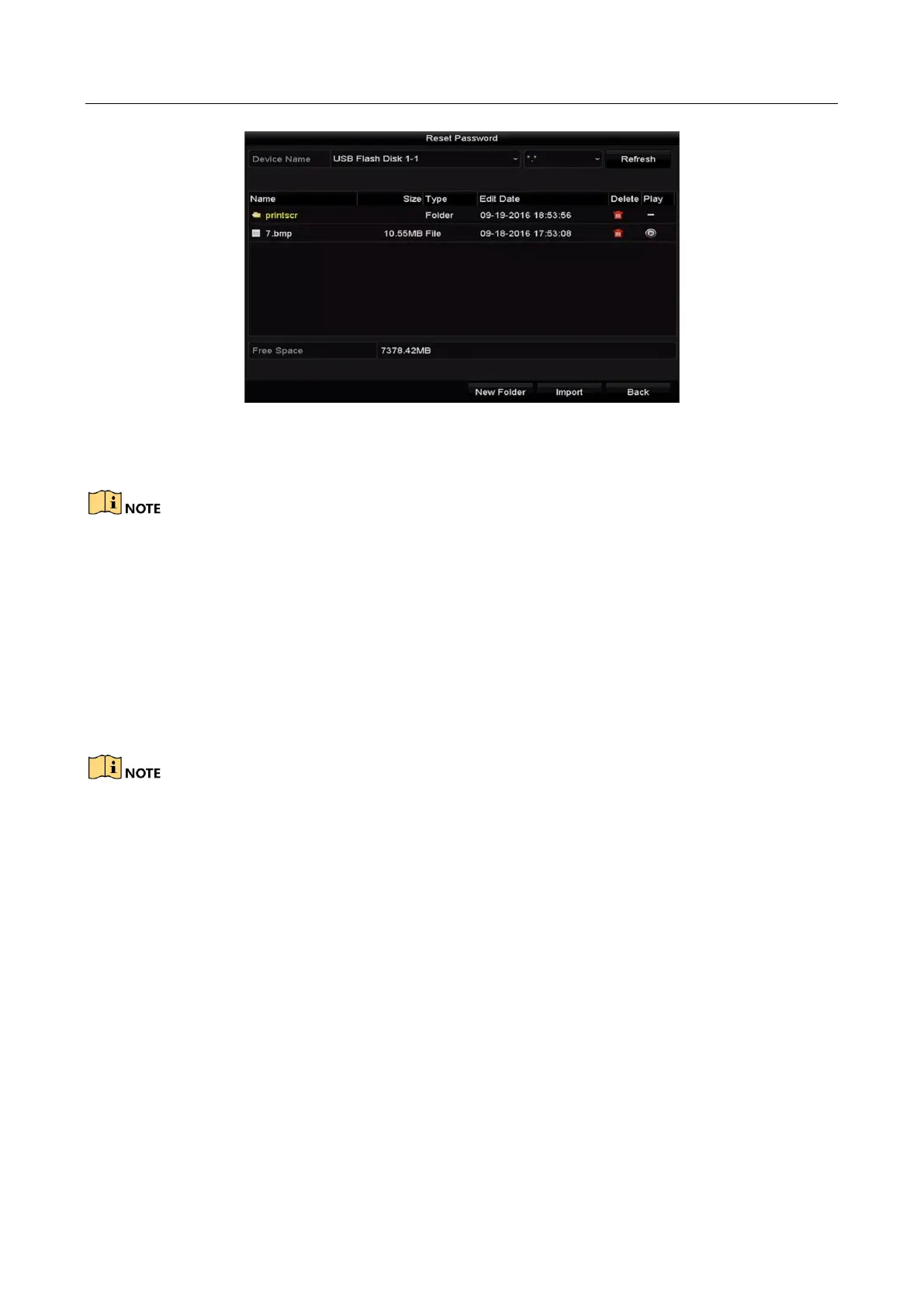

Figure 2-14 Reset Password
Step 2 Select the GUID file from the U flash disk and click Import to import the file to the device.
If you have imported the wrong GUIE file for 7 times, you will be not allowed to reset the password
for 30 minutes.
Step 3 After the GUID file is successfully imported, enter the reset password interface to set the
new admin password. Refer to Chapter 2.1.2 Activating Your Device for details.
Step 4 Click OK to set the new password. You can export the new GUID file to the U flash disk for
future password resetting.
When the new password is set, the original GUID file will be invalid. The new GUID file should be
exported for future password resetting. You can also enter the User>User Management interface to
edit the admin user and export the GUID file.
2.2 Using Wizard for Basic Configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure 2-15.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
