Network Video Recorder User Manual
93
Chapter 5 Recording and Capture Settings
The picture capture is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
5.1 Configuring Parameters
Purpose:
By configuring the parameters you can define the parameters which affect the image quality, such
as the transmission stream type, the resolution and so on.
Before you start:
1) Make sure that the HDD has already been installed. If not, please install a HDD and
initialize it. (Menu>HDD>General)

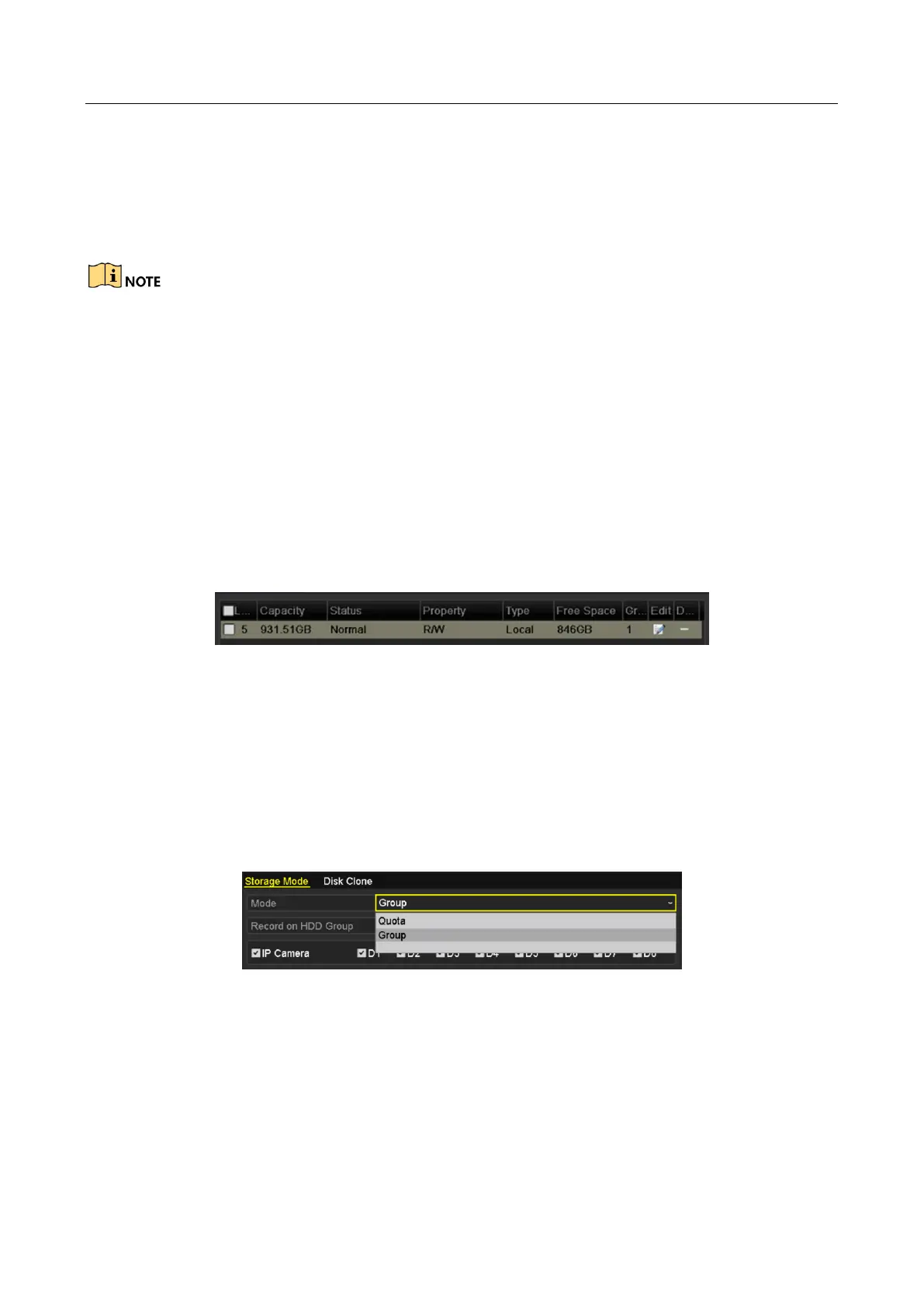

Figure 5-1 HDD- General
2) Check the storage mode of the HDD
Click Advanced to check the storage mode of the HDD.
If the HDD mode is Quota, please set the maximum record capacity and maximum picture
capacity. For detailed information, see Chapter Configuring Quota Mode.
If the HDD mode is Group, you should set the HDD group. For detailed information, see
Chapter Configuring HDD Group for Recording and Capture.
Figure 5-2 HDD- Advanced
Step 1 Enter the Record settings interface to configure the recording parameters:
Menu > Record > Parameters

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
