Network Video Recorder User Manual
182

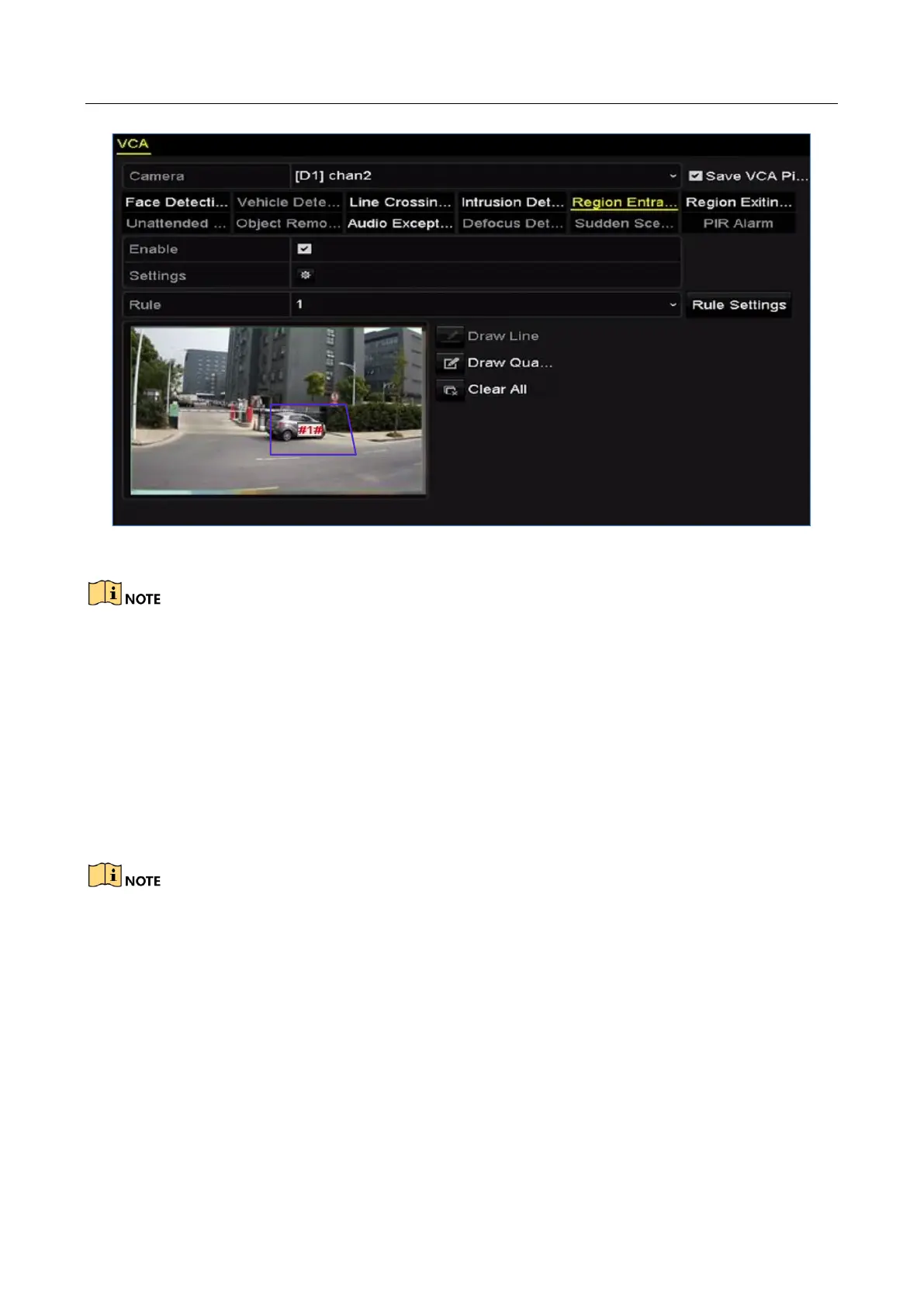

Figure 10-9 Set Region Entrance Detection
Up to 4 rules can be configured.
Step 8 Click Apply to save the settings.
10.6 Region Exiting Detection
Purpose:
Region exiting detection function detects people, vehicle or other objects which exit from a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
Please refer to the Chapter 9.5 Region Entrance Detection for operating steps to configure
the region exiting detection.
Up to 4 rules can be configured.
10.7 Unattended Baggage Detection
Purpose:
Unattended baggage detection function detects the objects left over in the pre-defined region
such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when
the alarm is triggered.

Table of Contents

Other manuals for HIKVISION DS-7604NI-K1/4P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-K1/4P and is the answer not in the manual?

HIKVISION DS-7604NI-K1/4P Specifications

General IconGeneral
Maximum resolution3840 x 2160 pixels
Video input channels4 channels
Supported resolutions4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product colorBlack
Rack mountingNo
LED indicatorsYes
Audio RCA inputs1
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity4
HDD capacity- GB
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Number of HDDs installed-
Output voltage48 V
Power consumption (max)10 W
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth240 mm
Width315 mm
Height48 mm
Weight1000 g
