HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
226
13.4 Checking and Editing Firmware
Purpose:
You can view the information of the firmware and set the background task speed on the Firmware
interface.
Step 1 Enter the Firmware interface to check the information of the firmware, including the version,
maximum physical disk quantity, maximum array quantity, auto-rebuild status, etc.

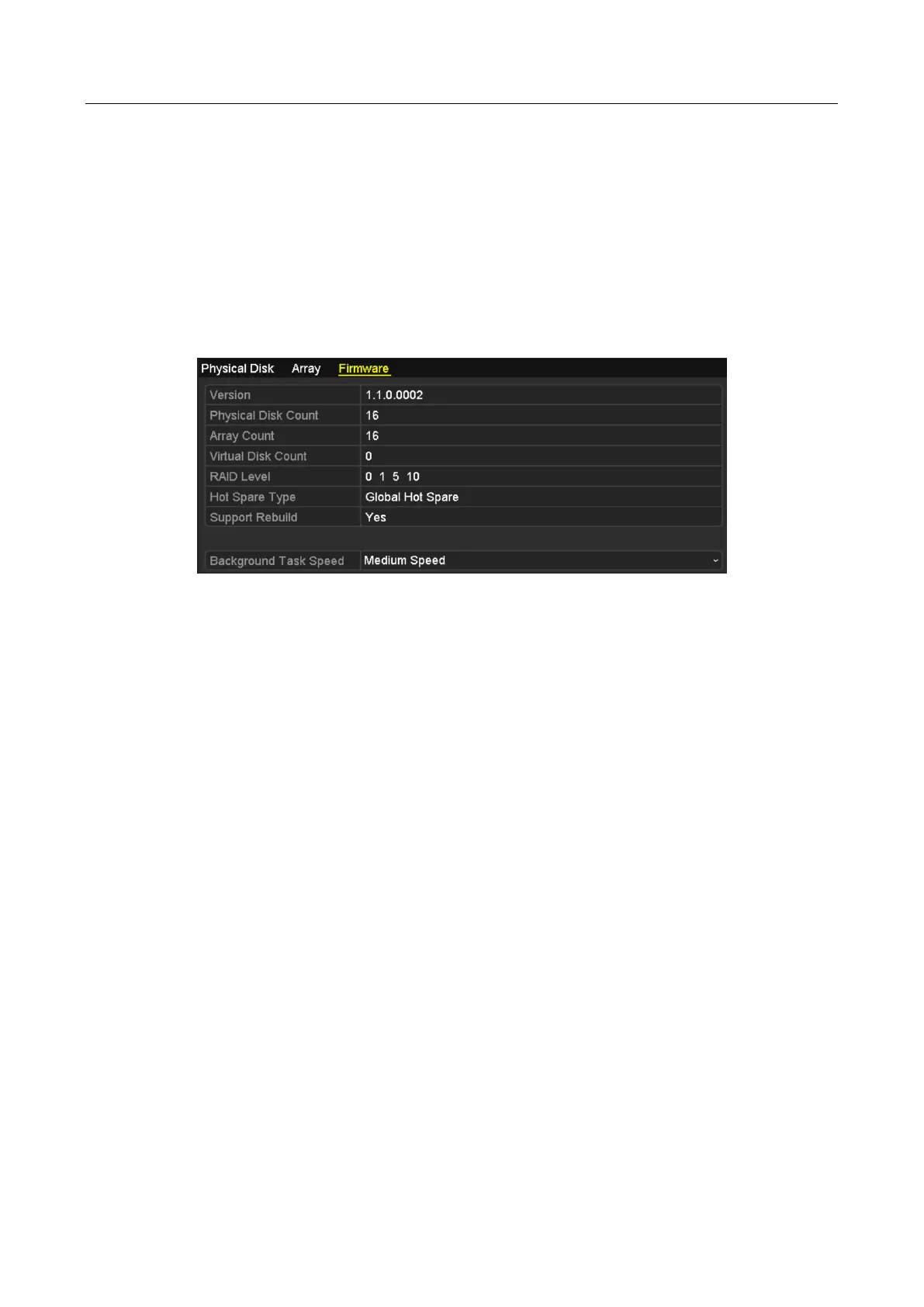

Figure 13-15 Firmware Interface
Step 2 You can set the Background Task Speed in the drop-down list.
Step 3 Click the Apply button to save the settings.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
