HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
78
3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Enter the Live View Settings interface.
Menu> Configuration> Live View

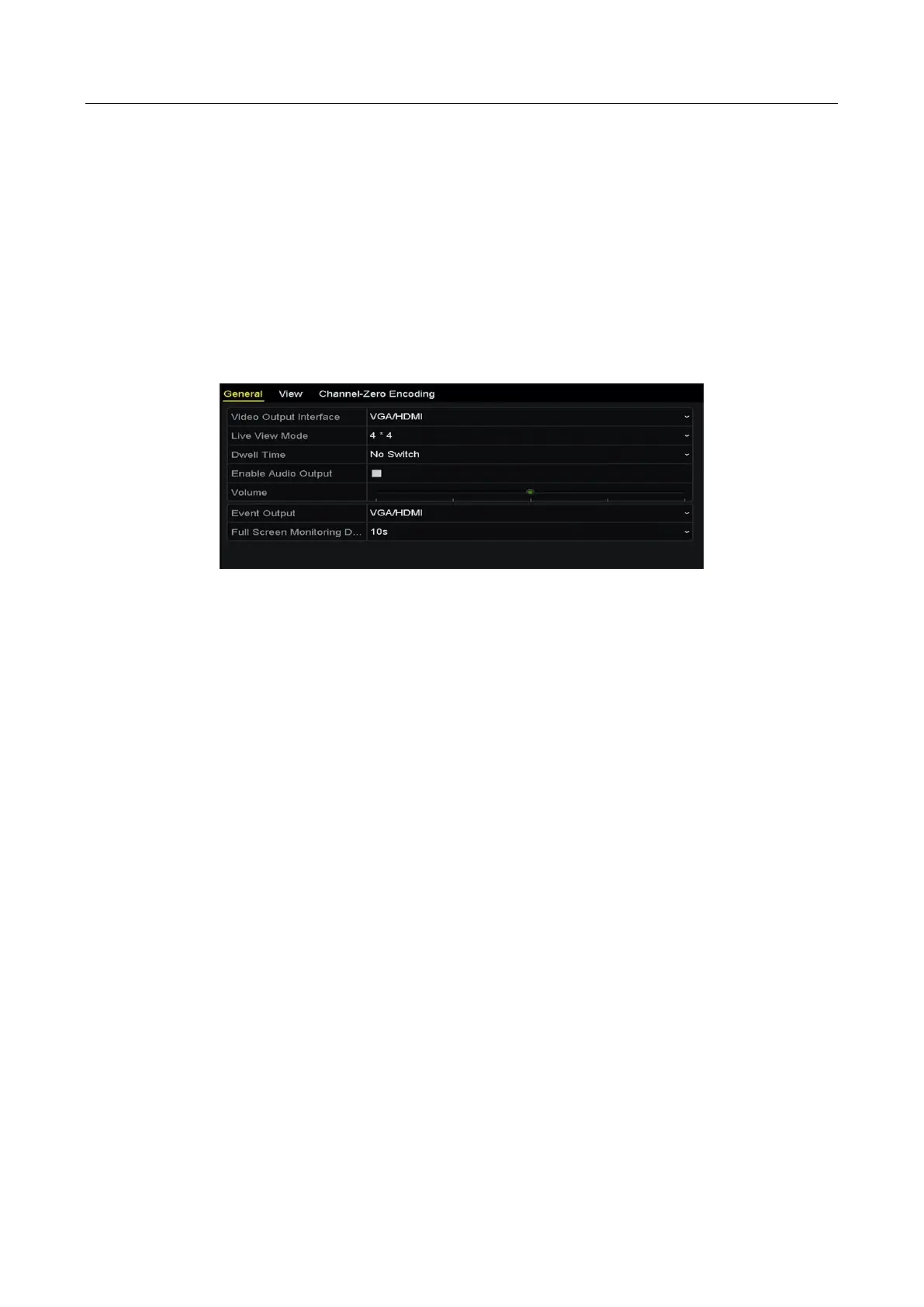

Figure 3-7 Live View-General
The settings available in this menu include:
 Video Output Interface: Designates the output to configure the settings for. The DS-9600NI
and DS-8600NI provide VGA/HDMI and VGA2/HDMI2, and DS-7600NI and DS-7700NI
provide the HDMI and VGA video outputs.
 Live View Mode: Designates the display mode to be used for Live View.
 Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
 Enable Audio Output: Enables/disables audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Designates the output to show event video.
 Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
Step 2 Set cameras order.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
