9.2 Configuring Overlay Channel
Purpose:
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Enter the POS settings interface.
Menu > Configuration > POS> Overlay Channel
Step 2 Click to select the IP camera from the camera list on the right, and then click a POS item
from the POS device list you want to overlay the POS information on the selected camera.
Click or to go to the previous or next page of cameras.
Each POS device can be selected for one camera only.

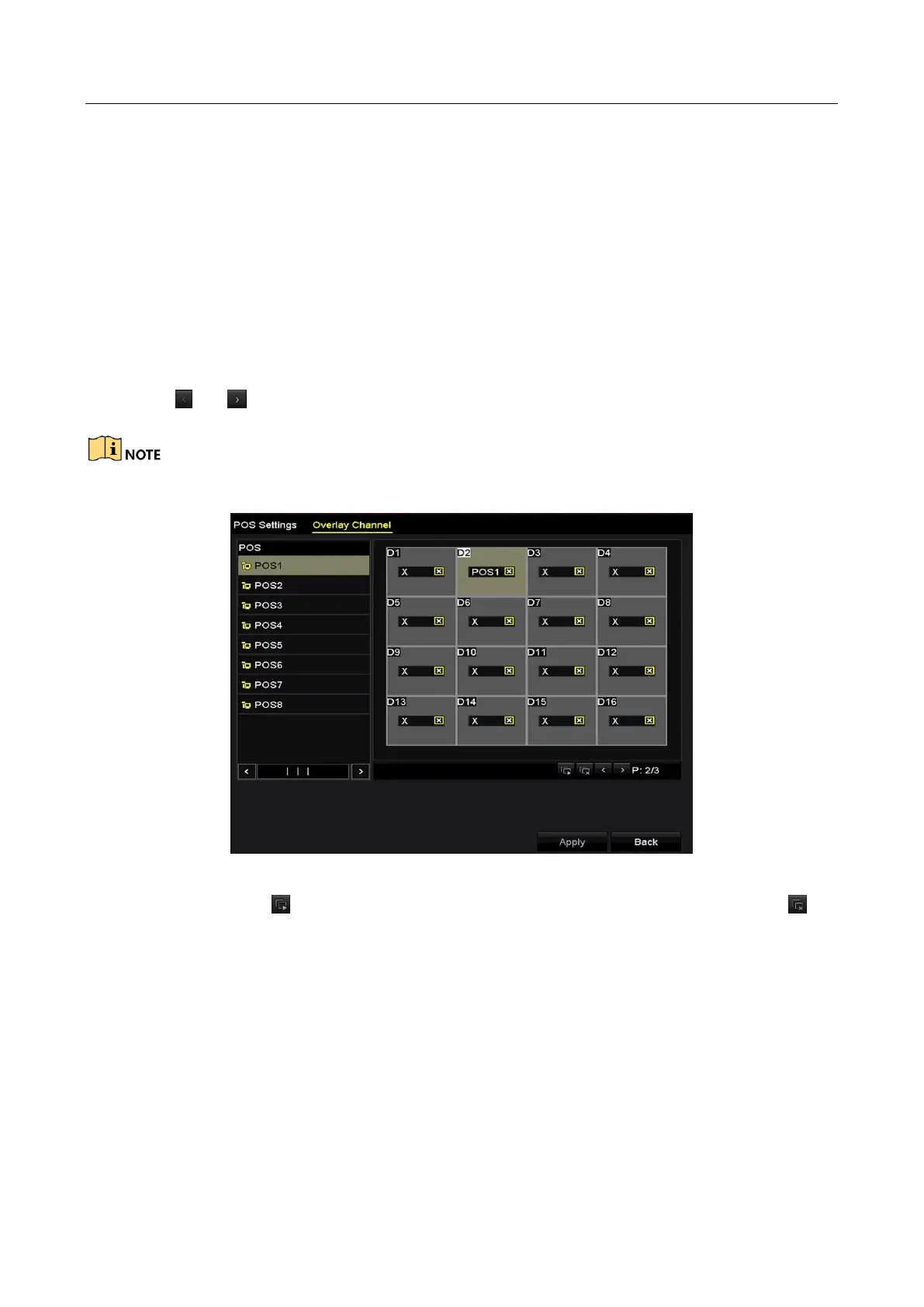

Figure 9-13 Overlay Channel Settings
Step 3 You can also click to overlay all POS items to the first 8 channels in order. And the is
used to clear all POS overlay settings.
Step 4 Click the Apply button to save the settings.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
