Network Video Recorder User Manual
168
3) Select the font size to small, medium or large.
4) Set the overlay time of the characters. The value ranges 5 -3600 sec.
5) Set the delay time of POS event. The value ranges 5 -3600 sec. When the device has not
received the POS message over the defined delay time, the transaction is finished.
6) (optional) Check the checkbox to enable the POS Overlay in Live View. When this
feature is enabled, the POS information can be overlain on the live view image.
7) Select the font color for the characters.

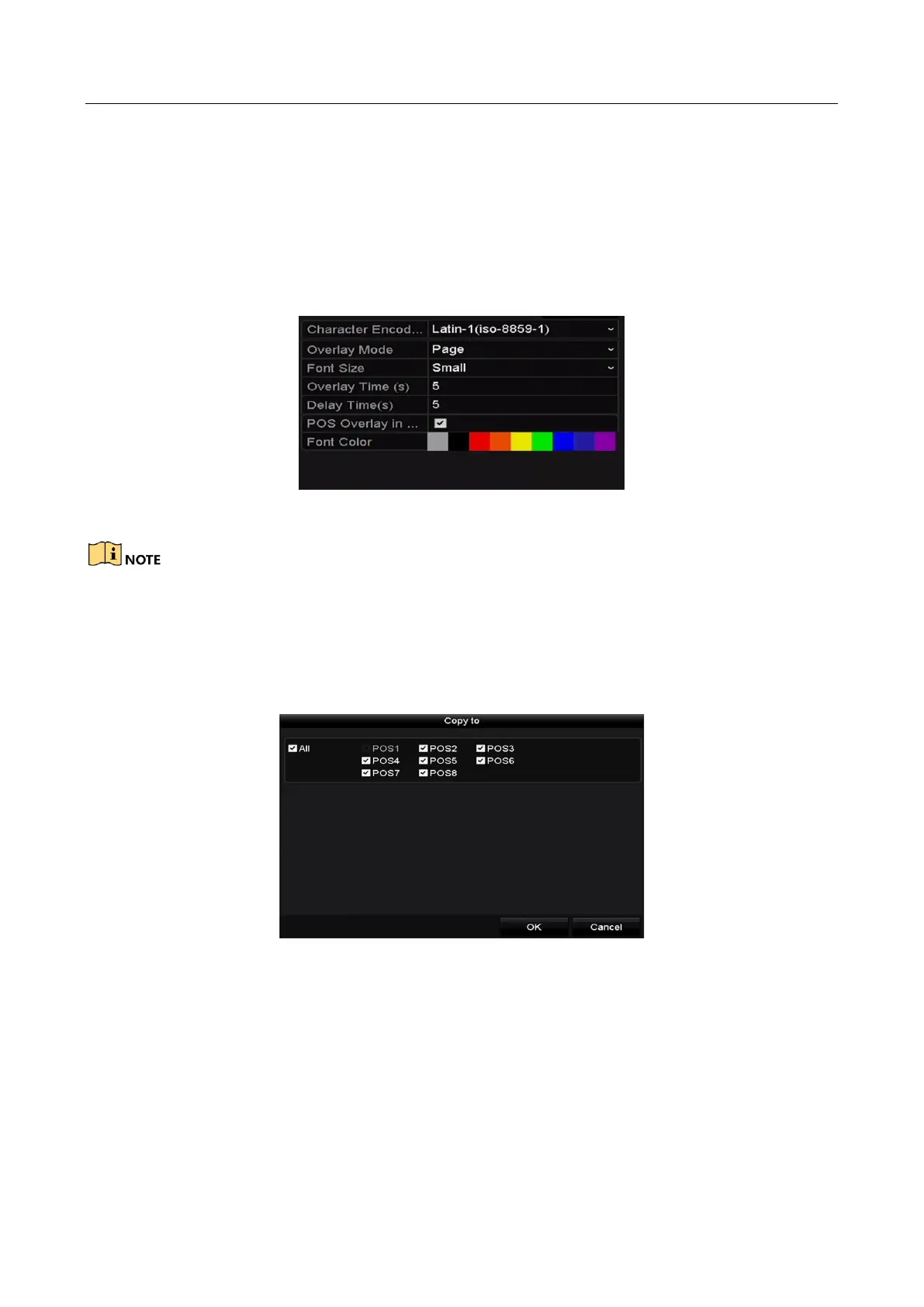

Figure 9-11 Overlay Character Settings
You can adjust the size and position of textbox on the preview screen of POS settings interface by
dragging the frame.
Step 7 Click Apply to activate the settings.
Step 8 (Optional) You can click the Copy button to copy the current settings to other POS (s).
Figure 9-12 Copy POS Settings

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
