HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
198

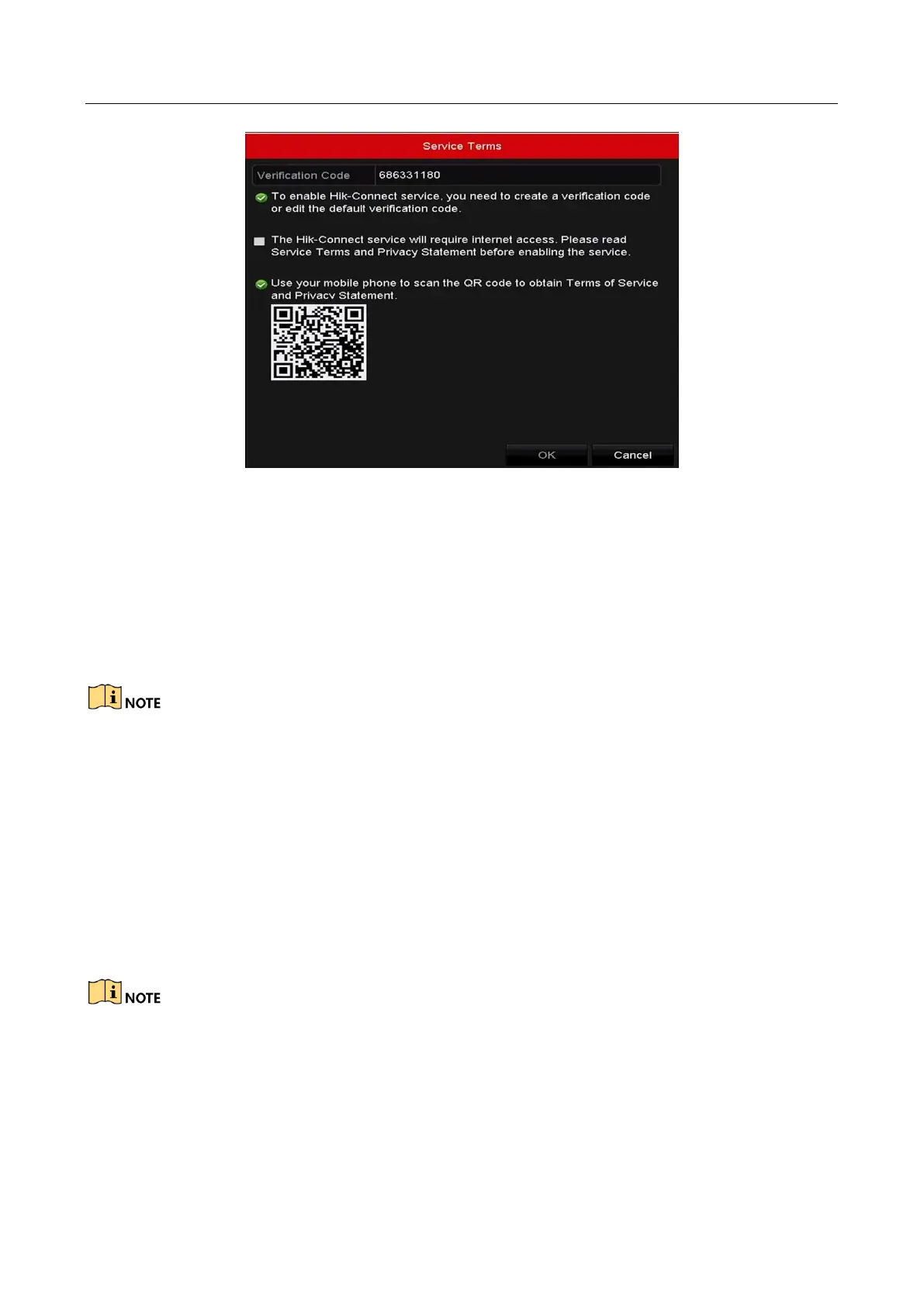

Figure 12-3 Service Terms
1) Create the verification code and enter the code in the Verification Code text field.
2) Check the checkbox of The Hik-Connect service will require internet access. Please
read Service Terms and Privacy Statement before enabling the service.
3) Scan the QR code on the interface to read the Service Terms and the Privacy
Statement.
4) Click OK to save the settings and return to the Hik-Connect interface.

Hik-Connect is disabled by default.

The verification code is empty when the device leaves factory.

The verification code must contain 6 to 12 letters or numbers and is case sensitive.

Every time you enable Hik-Connect, the Service Terms interface pops up and you should
check the checkbox before enabling it.
Step 4 (Optional) Check the checkbox of Custom and input the Server Address.
Step 5 (Optional) Check the checkbox of Enable Stream Encryption. After this feature is enabled,
the verification code is required for remote access and live view.
You can use the scanning tool of your phone to quickly get the code by scanning the QR code
below.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
