HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
52

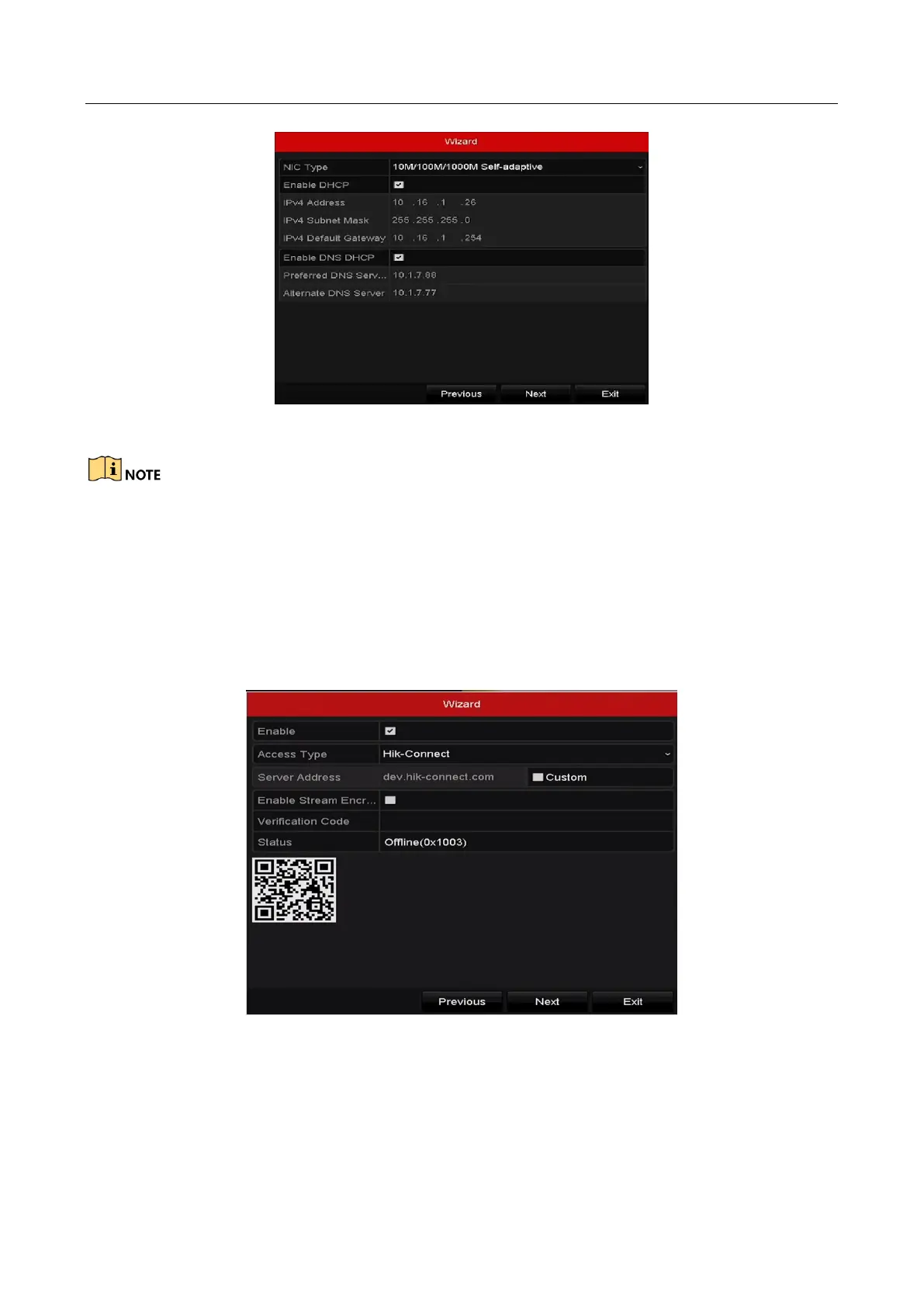

Figure 2-17 Network Settings
Two self-adaptive 10M/100M/1000M network interfaces provided for DS-9600NI, DS-8600NI,
DS-7700NI-I4 and DS-7700NI-K4, and two working modes are configurable: multi-address and
network fault tolerance. And one self-adaptive 10M/100M/1000M network interface for DS-7600NI,
DS-7700NI-I4/P and DS-7700NI-K4/P.
Step 4 Click Next button after you configured the basic network parameters. Enter the Hik-Connect
interface to configure the parameters. Please refer to Chapter 12.2.1 Configuring
Hik-Connect12.2.1 for detailed instructions.
Figure 2-18 Hik-Connect Settings
Step 5 Click Next button after you configured the basic network parameters. Then you will enter
the Advanced Network Parameter interface. You can enable UPnP, DDNS and set other
ports according to your need.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
