HIKVISION DS-7604NI-K1/4P User Manual

Network Video Recorder User Manual
63

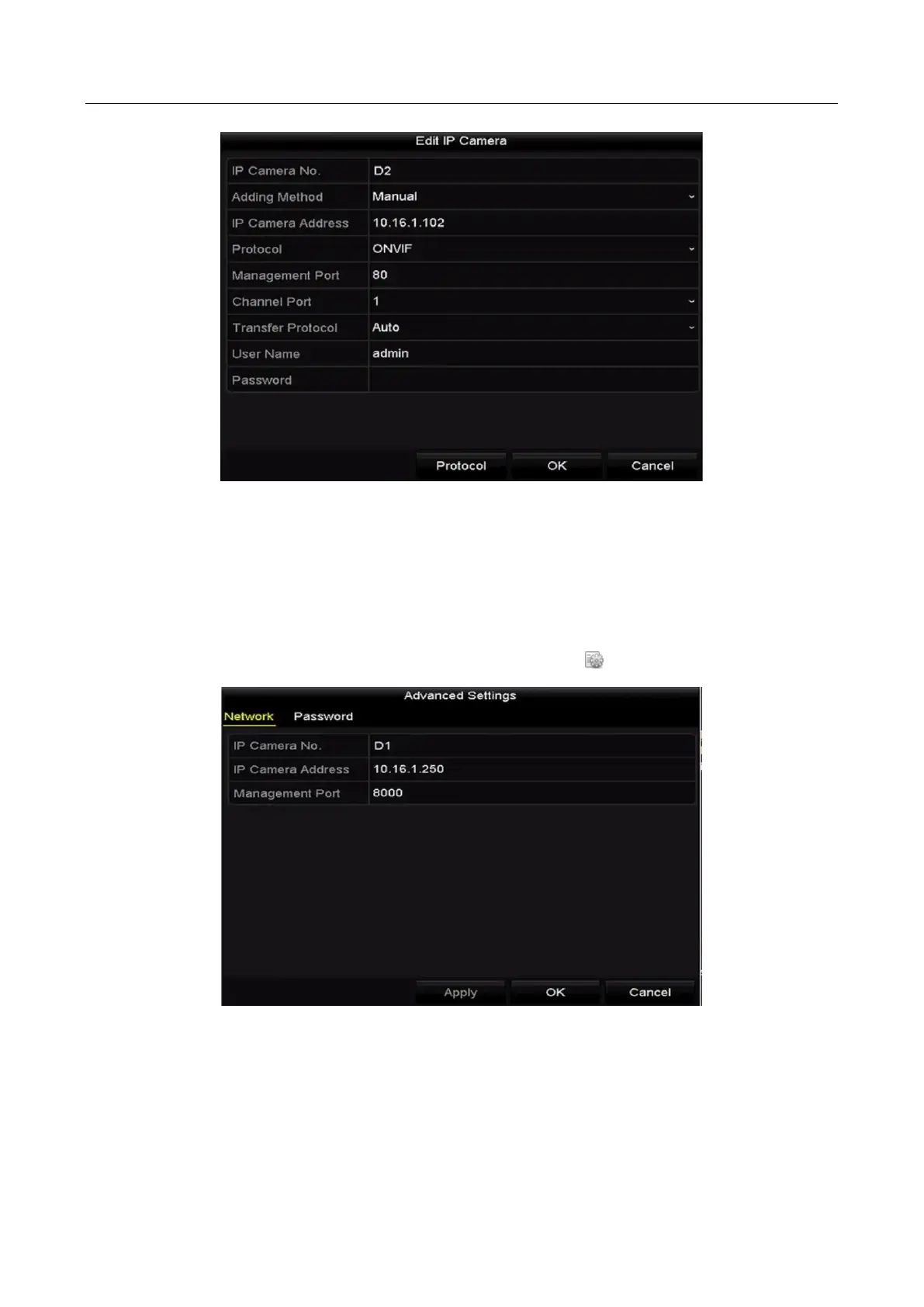

Figure 2-35 Edit the Parameters
Channel Port: If the connected device is an encoding device with multiple channels, you can
choose the channel to connect by selecting the channel port No. in the dropdown list.
Step 2 Click OK to save the settings and exit the editing interface.
 To edit advanced parameters:
Step 1 Drag the horizontal scroll bar to the right side and click the icon.
Figure 2-36 Network Configuration of the Camera
Step 2 You can edit the network information and the password of the camera.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
