Network Video Recorder User Manual
75

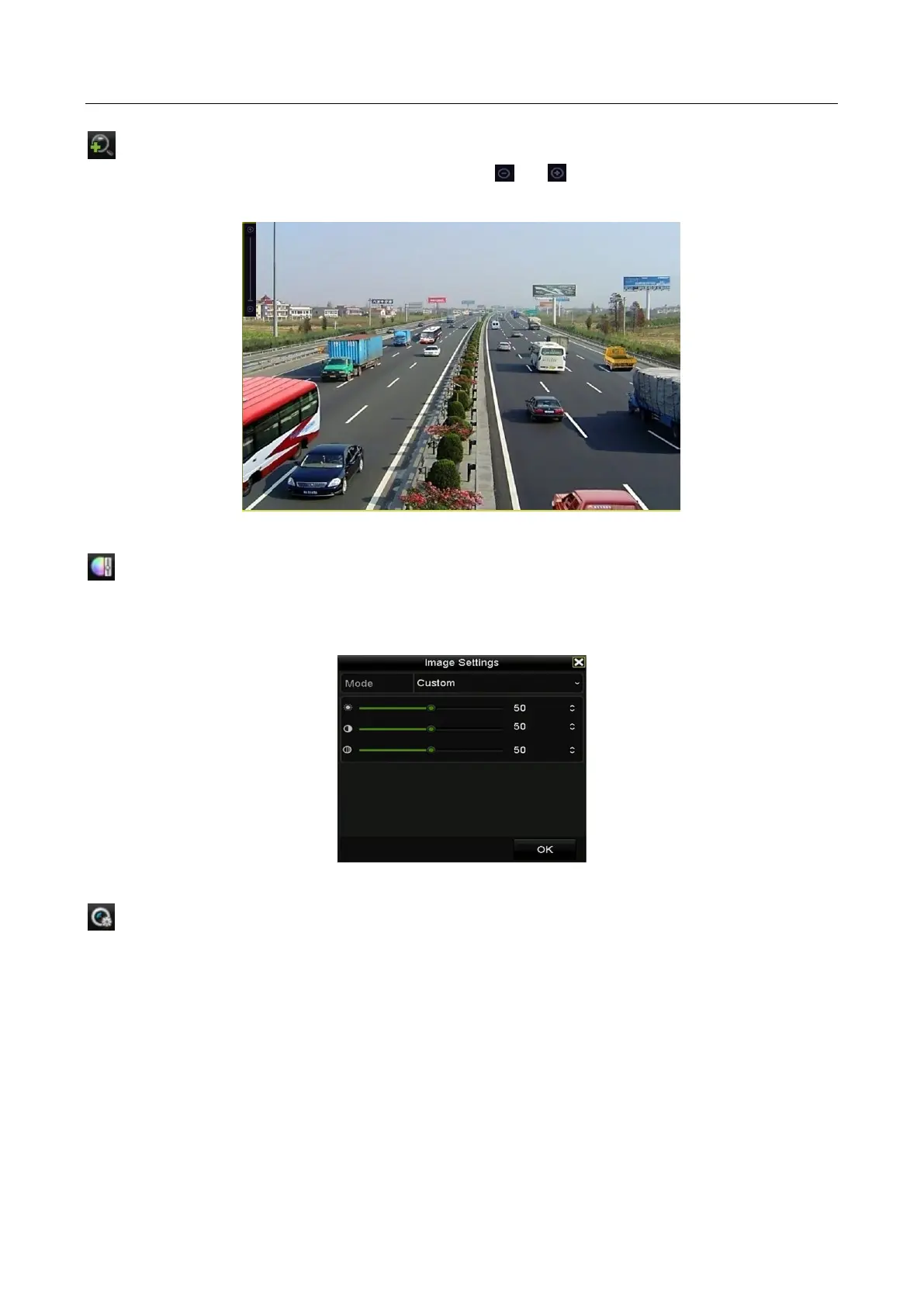

Digital Zoom is for zooming in the live image. You can zoom in the image to different
proportions (1 to16X) by moving the sliding bar from to . You can also scroll the mouse
wheel to control the zoom in/out.
Figure 3-3 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu.
You can set the image parameters like brightness, contrast, saturation and hue according to the
actual demand.
Figure 3-4 Image Settings- Customize
Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency.

HIKVISION DS-7604NI-K1/4P Specifications

General

Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Product color	Black
Rack mounting	No
LED indicators	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	-
Output voltage	48 V
Power consumption (max)	10 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
