80

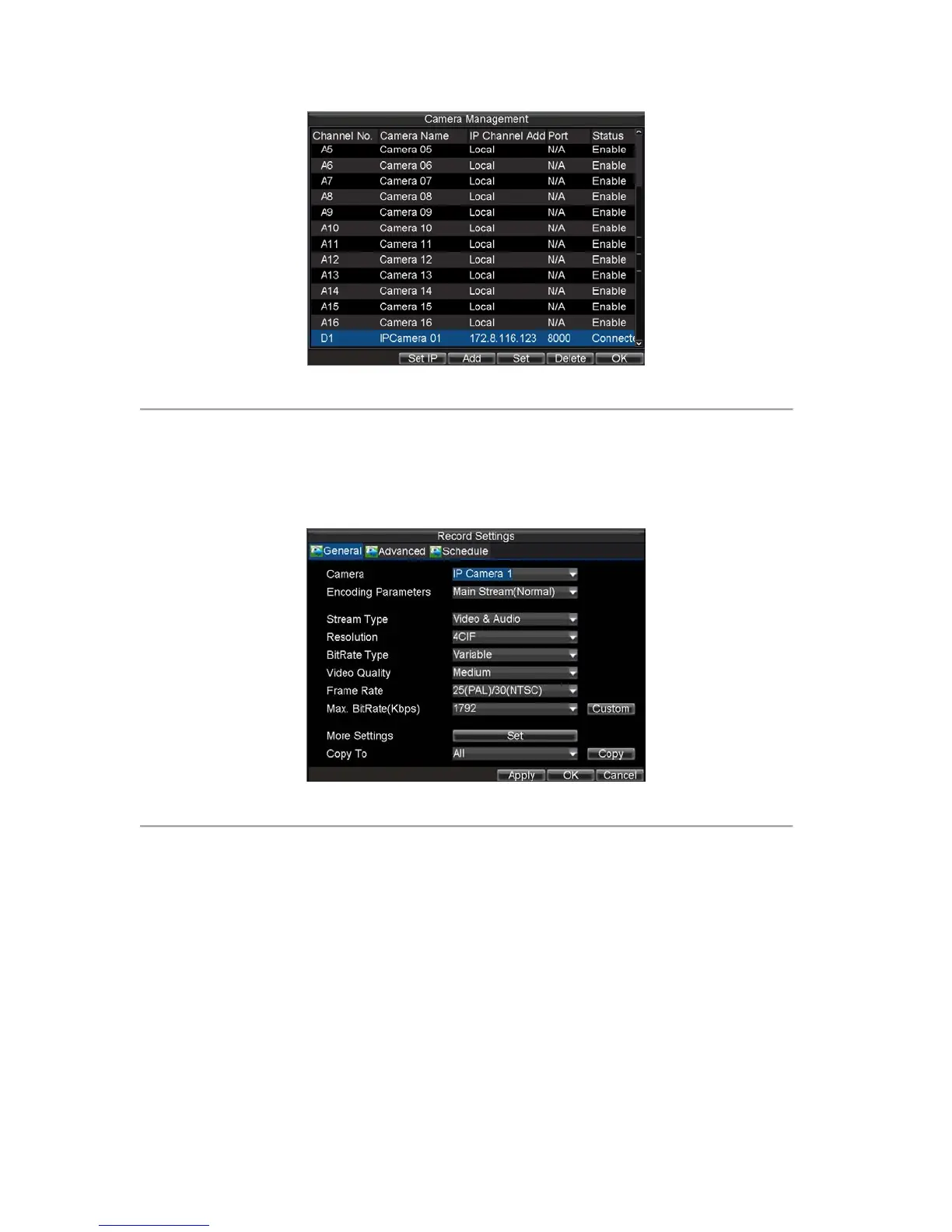

Figure 4. Camera Management Menu
9. Click OK to exit out of the Camera Management menu.
To adjust IP camera compression settings:
1. Enter the Record Settings menu, shown in Figure 5 by clicking Menu > Setting > Record.
Figure 5. Record Settings Menu
2. Select the General tab.
3. Select the IP camera to configure next to the Camera label.
4. Adjust IP camera compression settings. If the IP camera was added successfully, the DVR will show
OSD, channel name and the compression parameters in accordance to the IP camera’s current
settings.
5. Select the Sub stream next to the Encoding Parameters to set sub stream parameters. Sub stream is
only used for previewing.
6. Click OK to save and exit out of menu.
Note: The quality of resolution, frame rate and bit rate depends on the performance of the IP camera.
