HIKVISION DS-K3BC430LX-868 - 4.1 Components Introduction; 4.2 Wiring; 4.3 Terminal Description; 4.3.1 General Wiring

4.1 Components Introducon
By default, basic components of the turnsle are connected well.
The pedestals can communicate by wiring the interconnecng
cables. And the turnsle supports wiring the AC electric supply
for the whole system' s power supply.
Note
Power supply: 24 V DC
Power supply voltage uctuaon range: ± 5%

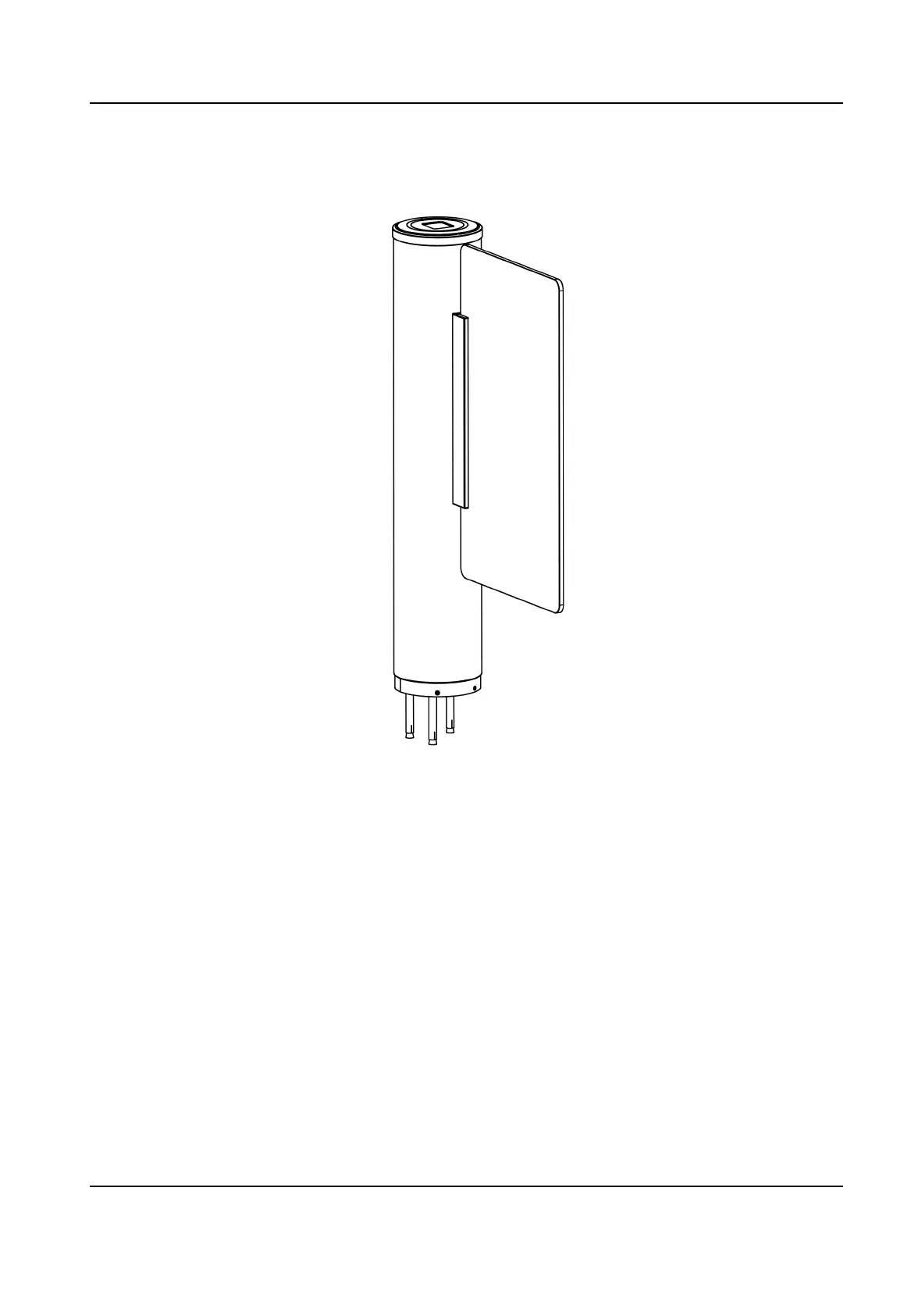

Figure 4-1 Components Introducon
4.2 Wiring
Scan the QR code to view the wiring guide video.
4.3 Terminal Descripon
4.3.1 General Wiring
The general wiring of lane control board, access control board
and
oponal board.
