Note
●
There are 2 RS-485 interfaces on the access control board for entrance. Refer to Access Control
Board Terminal Descripon (Oponal) for details.
There are 2 RS-485 interfaces on the oponal board for exit. Refer to for details.
●
If there are other RS-485 devices
connecng, the ID of the RS-485 cannot be conicted.
●
The connected 12 V power interface for the face
recognion terminal cannot be connected with
other 12 V devices.

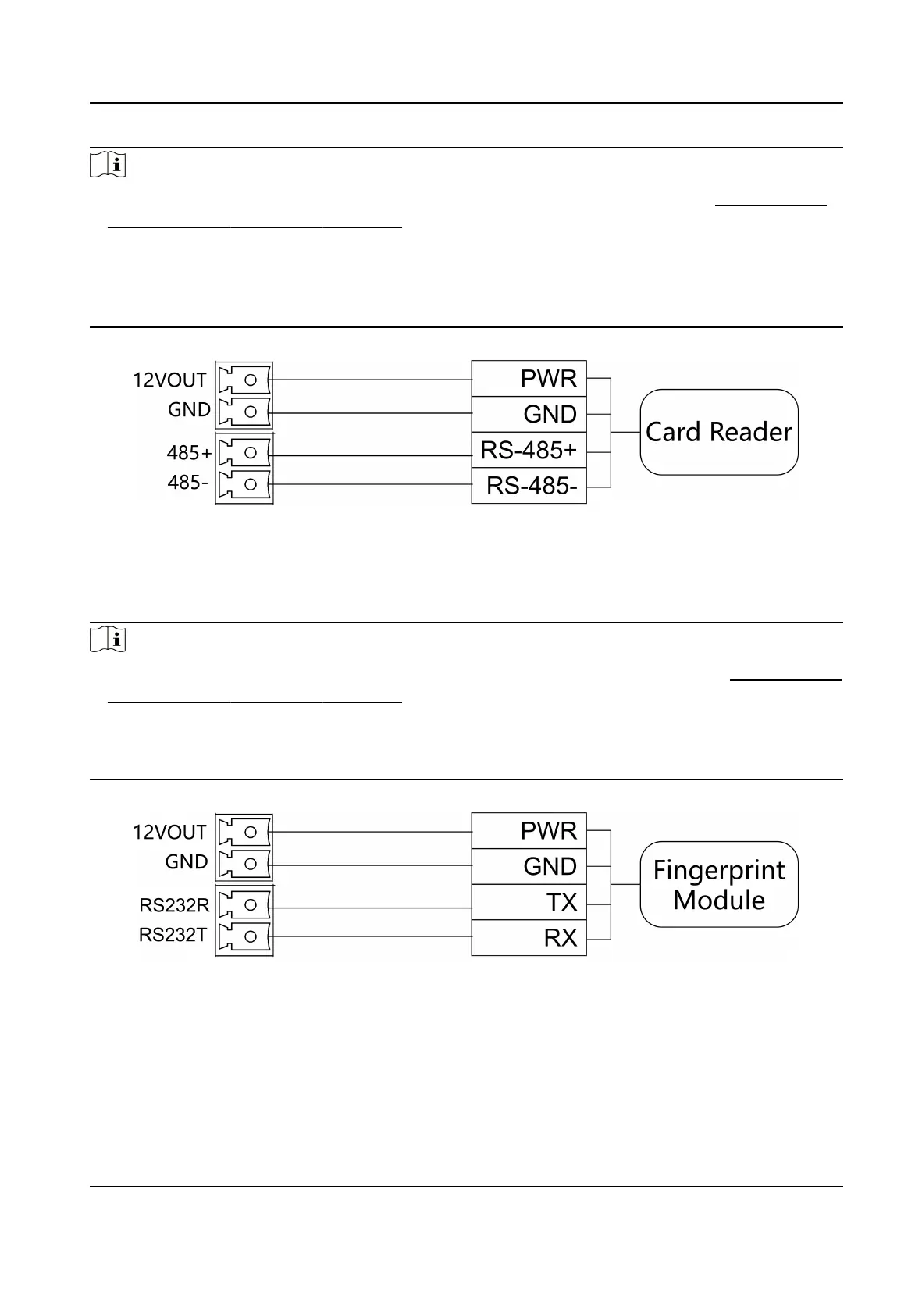

Figure 4-8 Wiring RS-485
4.3.7 RS-232 Wiring
Note
●
There is 1 RS-232 interface on the extended interface of access control board, see Access Control
Board Terminal Descripon (Oponal) . The RS-232A corresponds to UART 1 on web.
●
There is 1 RS-232 interface on the oponal board, see . The RS-232B corresponds to UART 2 on
web.
The RS-232C interface is reserved.
Figure 4-9 RS-232 Wiring
4.3.8 Alarm Input Wiring
On the main lane control board, you can wire the re alarm input interface.
DS-K3BC430LX Series Swing Gate
17
