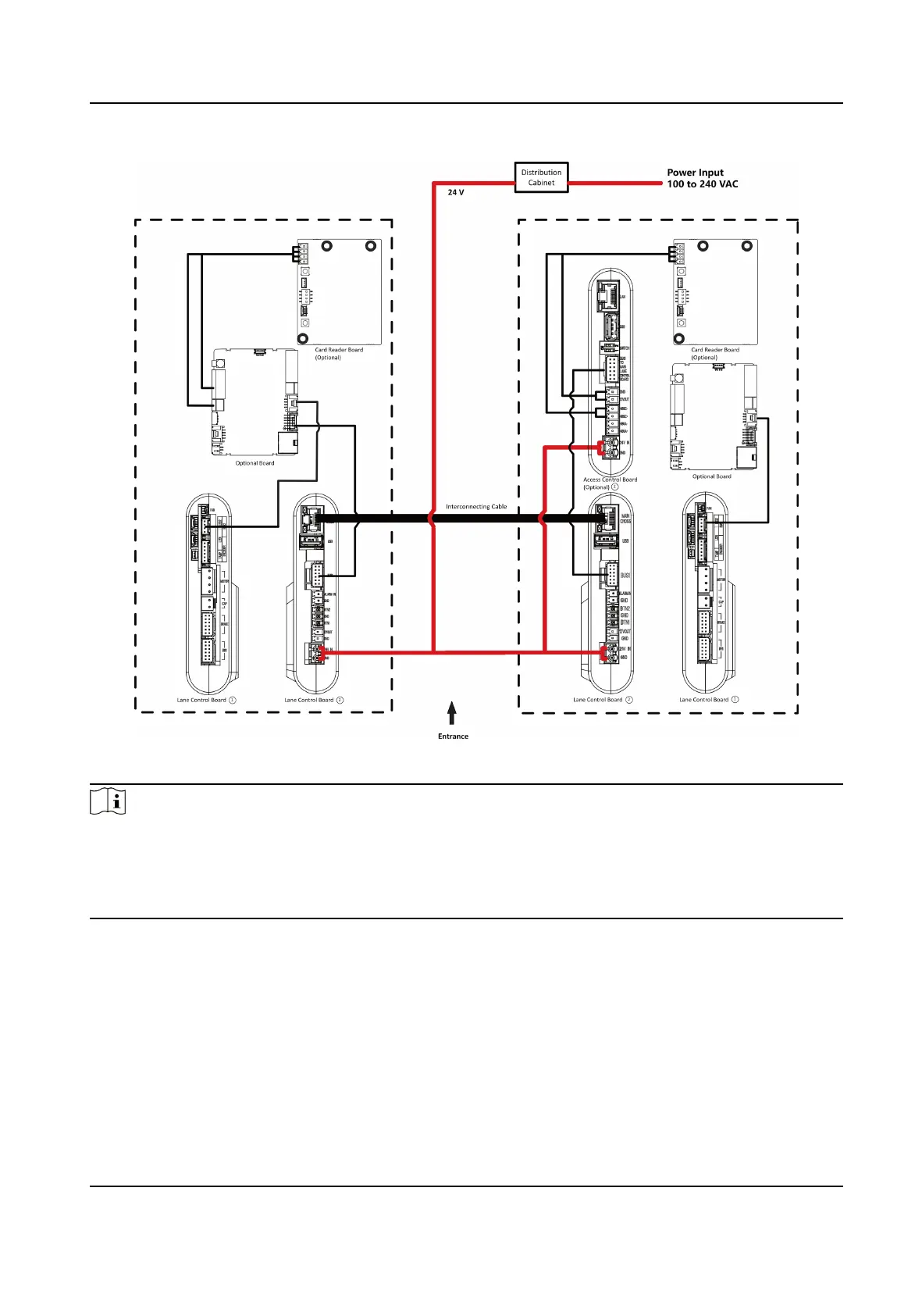

Figure 4-2 General Wiring
Note
●
It is recommended to use Hikvision matched distribuon cabinet (sold separately) to covert the
AC mains power to 24 V.
●
The ① and ② refer to the two sides of a same board.
●
Barrier opens at the entrance/exit: connect to BTN1/BTN2 and GND.
4.3.2 Lane Control Board Terminal Descripon
The lane control board contains indicator board interface, interconnecng interface, access control
board interface,
re input interface, exit buon interface, 12 VDC output interface, 24 VDC input
interface, communicaon interface, encoder interface, power supply interface for motor,
supercapacitor interface, brake interface, and tamper interface.
The picture displayed below is the lane control board diagram.
DS-K3BC430LX Series Swing Gate
12
