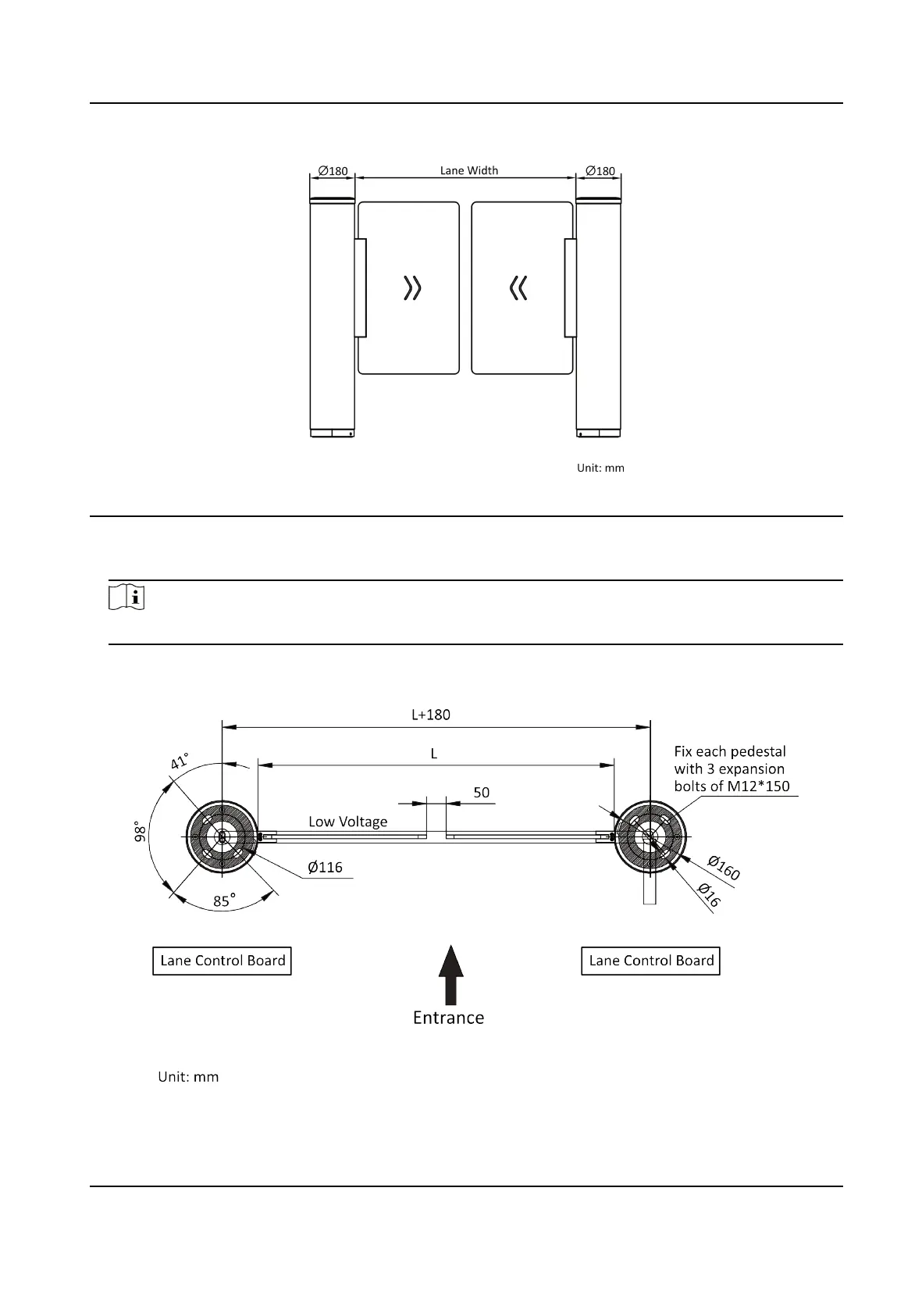

Figure 2-1 Dimension
1.
Draw a central line on the installaon surface of the le or right pedestal.
2.
Draw other parallel lines for installing the other pedestals.
Note
The distance between the nearest two line is L + 180 mm. L represents the lane width.
3.
Slot on the installaon surface and dig installaon holes. Put 3 expansion bolts of M12*150 for
each pedestal.
Figure 2-2 Hole Posion and System Wiring
DS-K3BC430LX Series Swing Gate
4
