HIKVISION DS-K3G501X Series User Manual

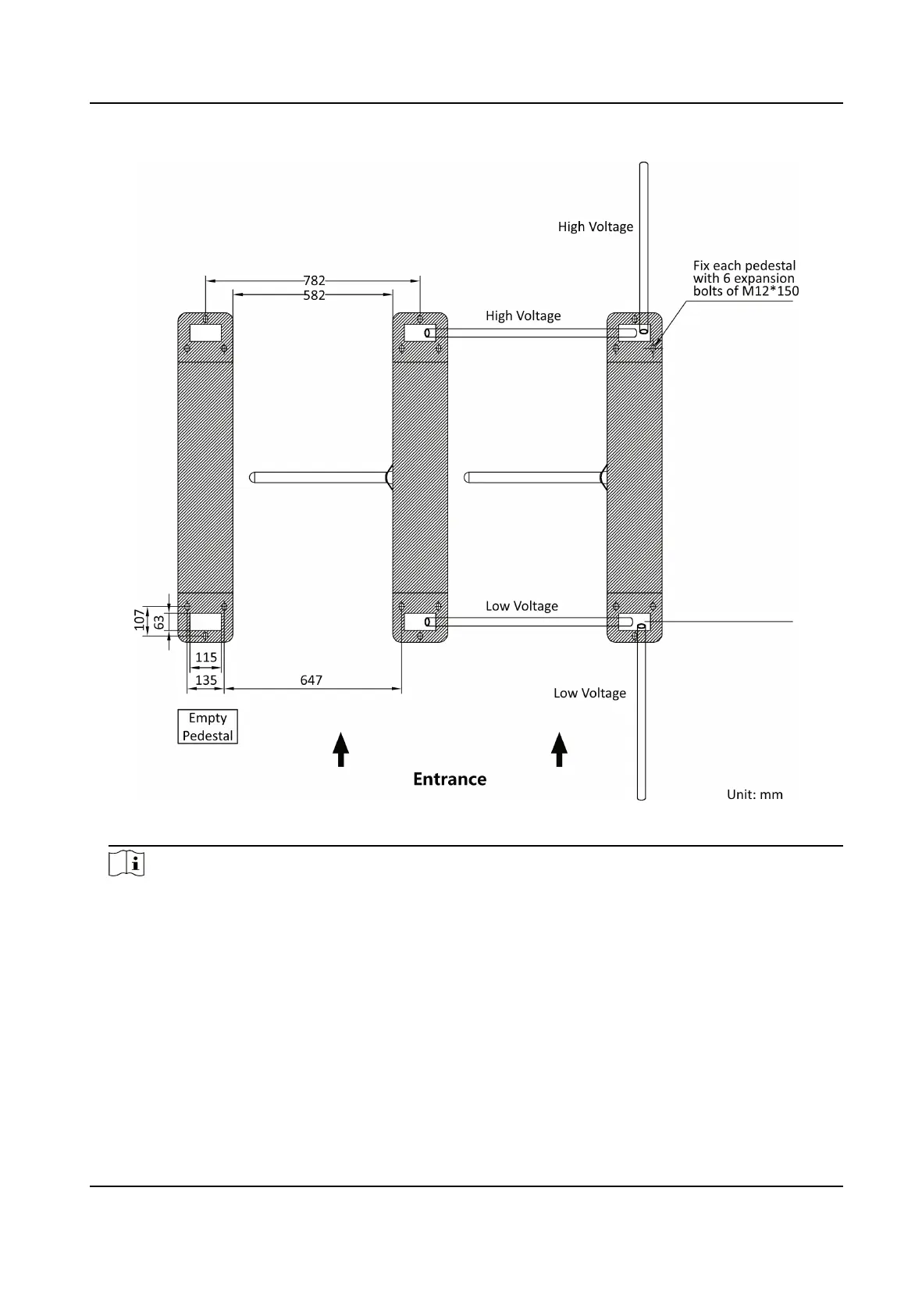

Figure 2-1 System Wiring Diagram
Note
●
High voltage: AC power input
Low voltage: network cable (CAT5E, CAT6 or CAT6E), interconnecng data cable and
interconnecng power cable.
●
The supplied
interconnecng power cable length is 3.75 m, if necessary, you can contact the
sales person to replace it with a 5.5 m cable.
●
The suggested inner diameter of the high and low voltage conduit is larger than 30 mm. If the
switch
(oponal) is selected, the suggested inner diameter of the high voltage conduit is larger
than 30 mm.
DS-K3G501X Series Tripod Turnsle
4

HIKVISION DS-K3G501X Series Specifications

General

Brand	HIKVISION
Model	DS-K3G501X Series
Category	Turnstiles
Language	English
