Chapter 4 General Wiring
Note
●
Aer maintenance, you should close the water-proof cover over the high/low voltage module.
●
When you should maintain or disassemble the high voltage modules, you should remove the
enre high voltage modules and maintain it outside the turnsle. You should unplug the cables
that connected to the peripherals before maintenance to avoid destroy of the device.
4.1 Components Introducon
By default, basic components of the turnsle are connected well. The turnsle supports wiring the
AC electric supply for the whole system's power supply.
The picture displayed below describes each component's
posion on the turnsle.
Note
The diagram is for reference only.

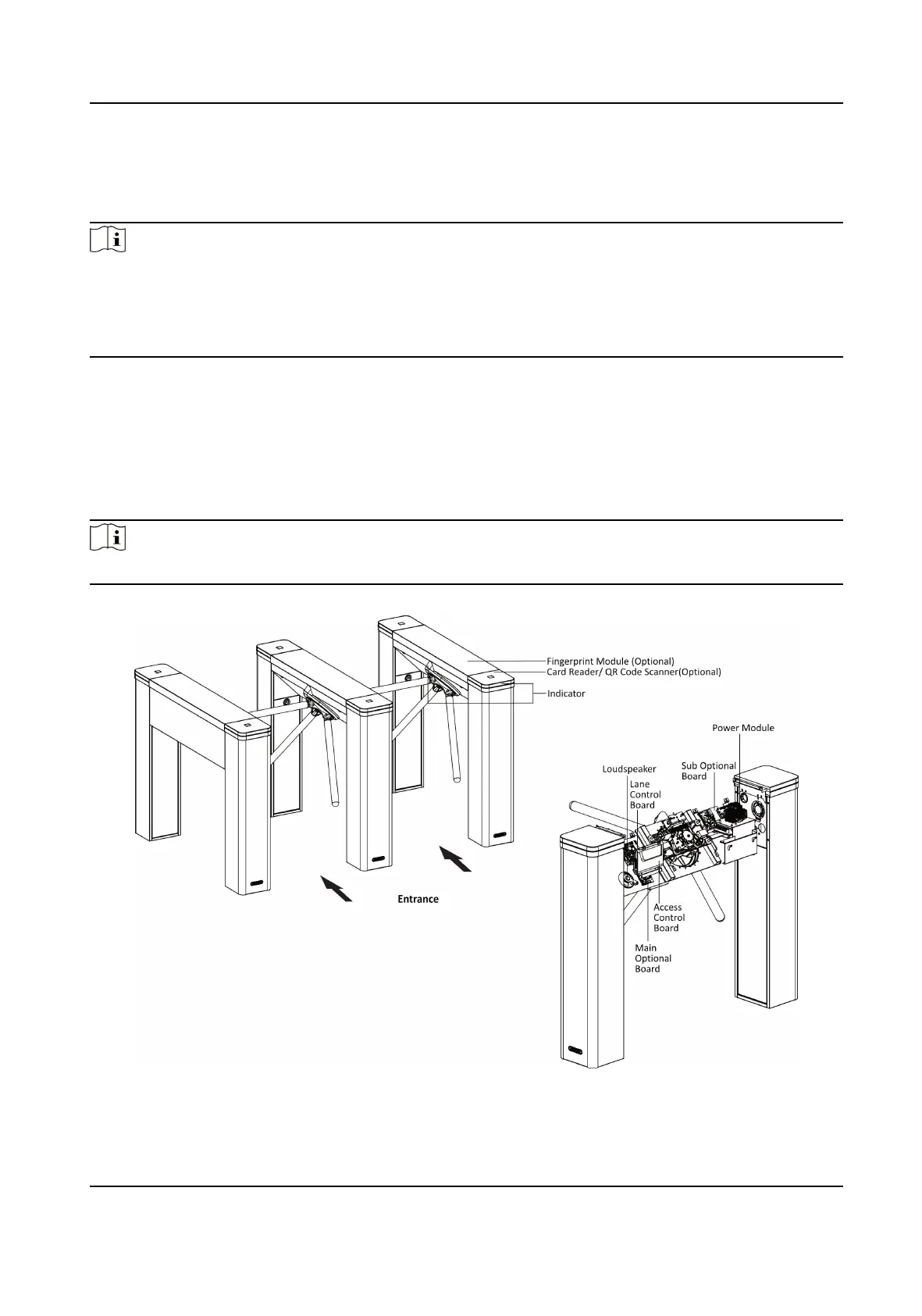

Figure 4-1 Components Diagram
DS-K3G501X Series Tripod Turnsle
8
