HIKVISION DS-K3G501X Series - Exit Button Wiring

Figure 4-9 Remaining Open
Figure 4-10 Remaining Closed
4.4.9 Exit Buon Wiring
The main and sub lane control board each has 1 buon interface, which can be connected to exit
buon or face recognion device.

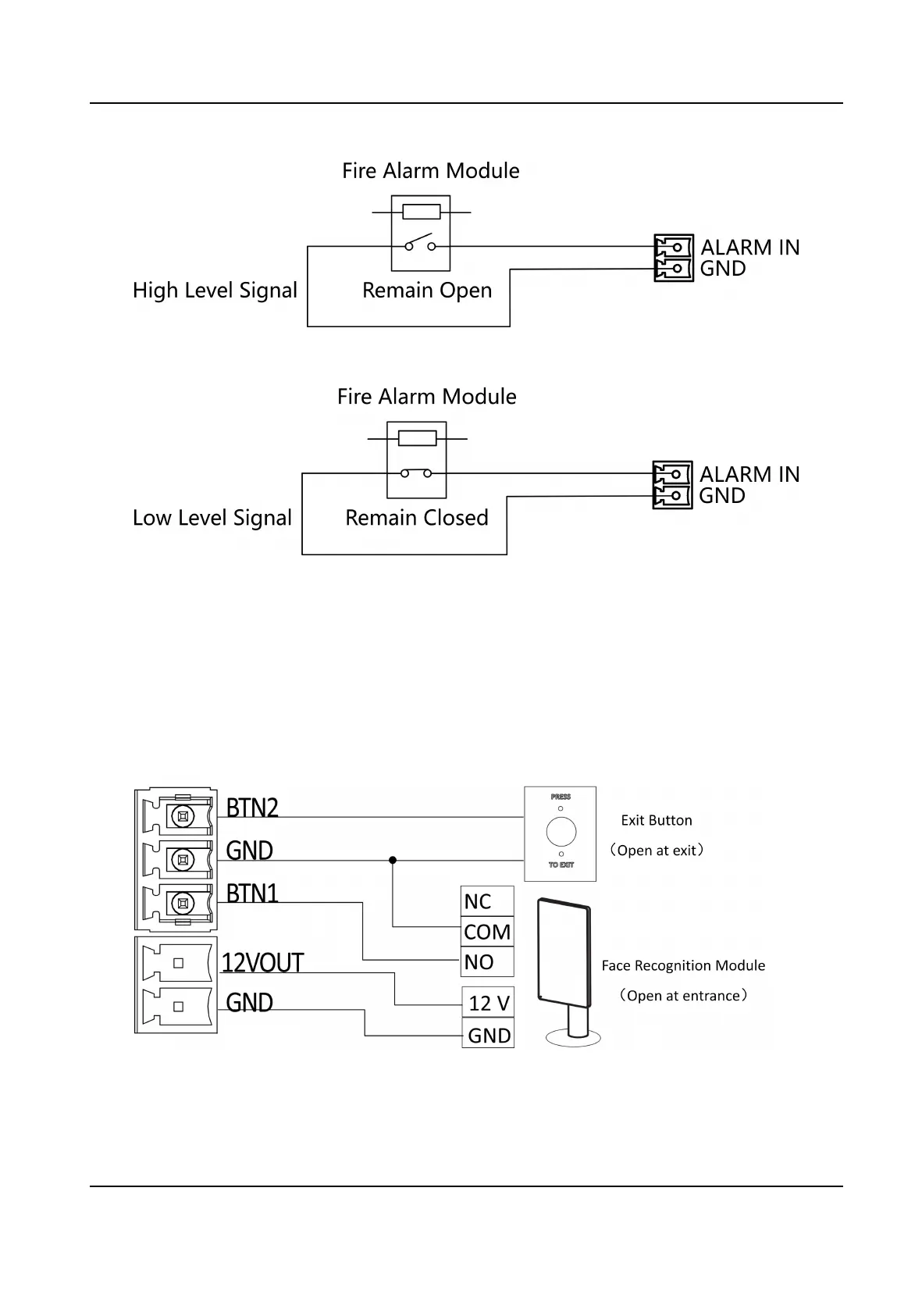

Figure 4-11 Exit Buon Wiring
