Figure 4-17 Placement of Lines
6.
Connect the cables.
1) Connect the lines and
module-connecng line to the corresponding interfaces of the main
unit, then place the main unit into the upper grid.
2) Connect the other end of the
module-connecng line to the input interface of the sub
module.
3) Organize the cable with cable

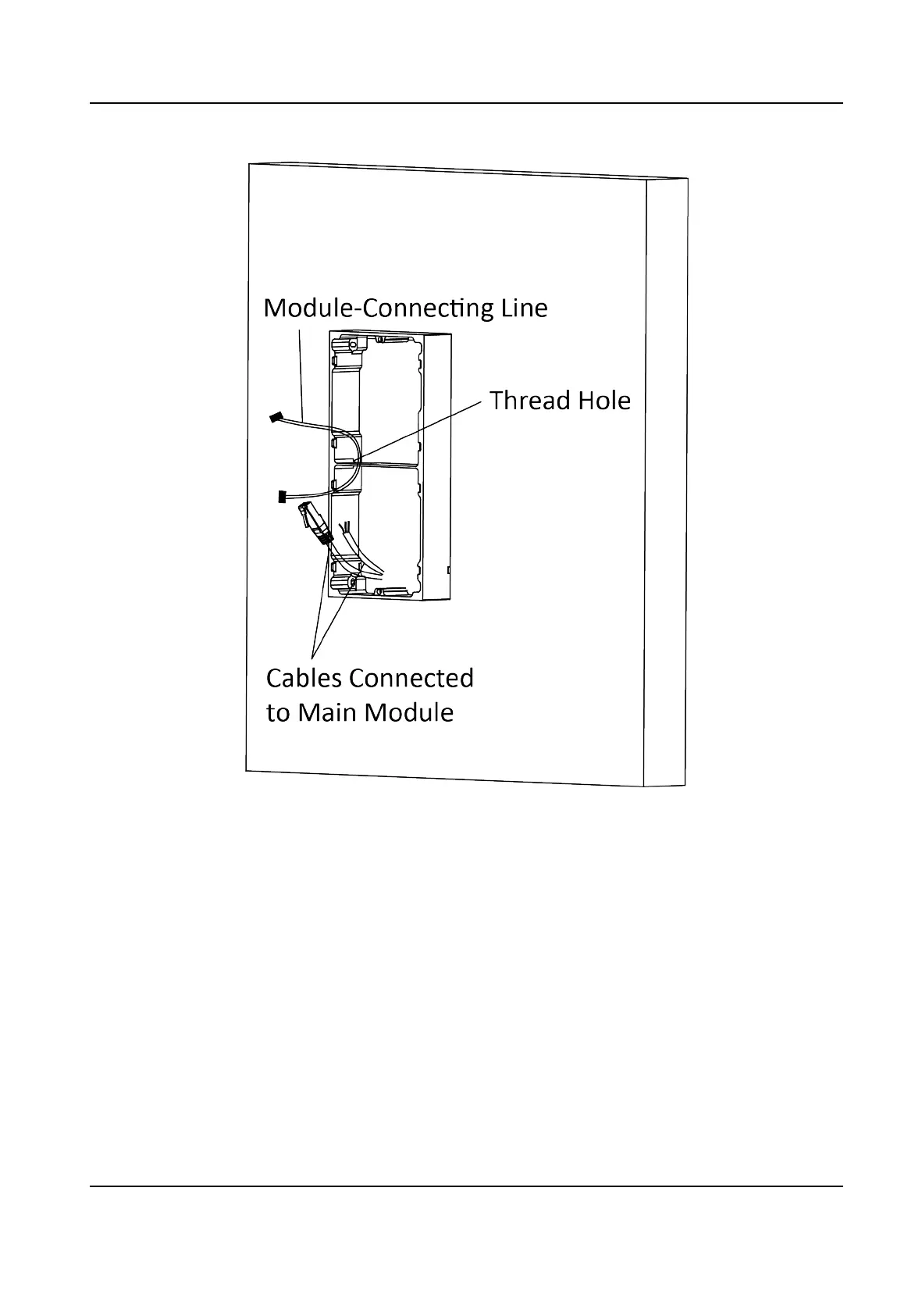

e in the package. The suggested cable connecon picture as
shown below.
