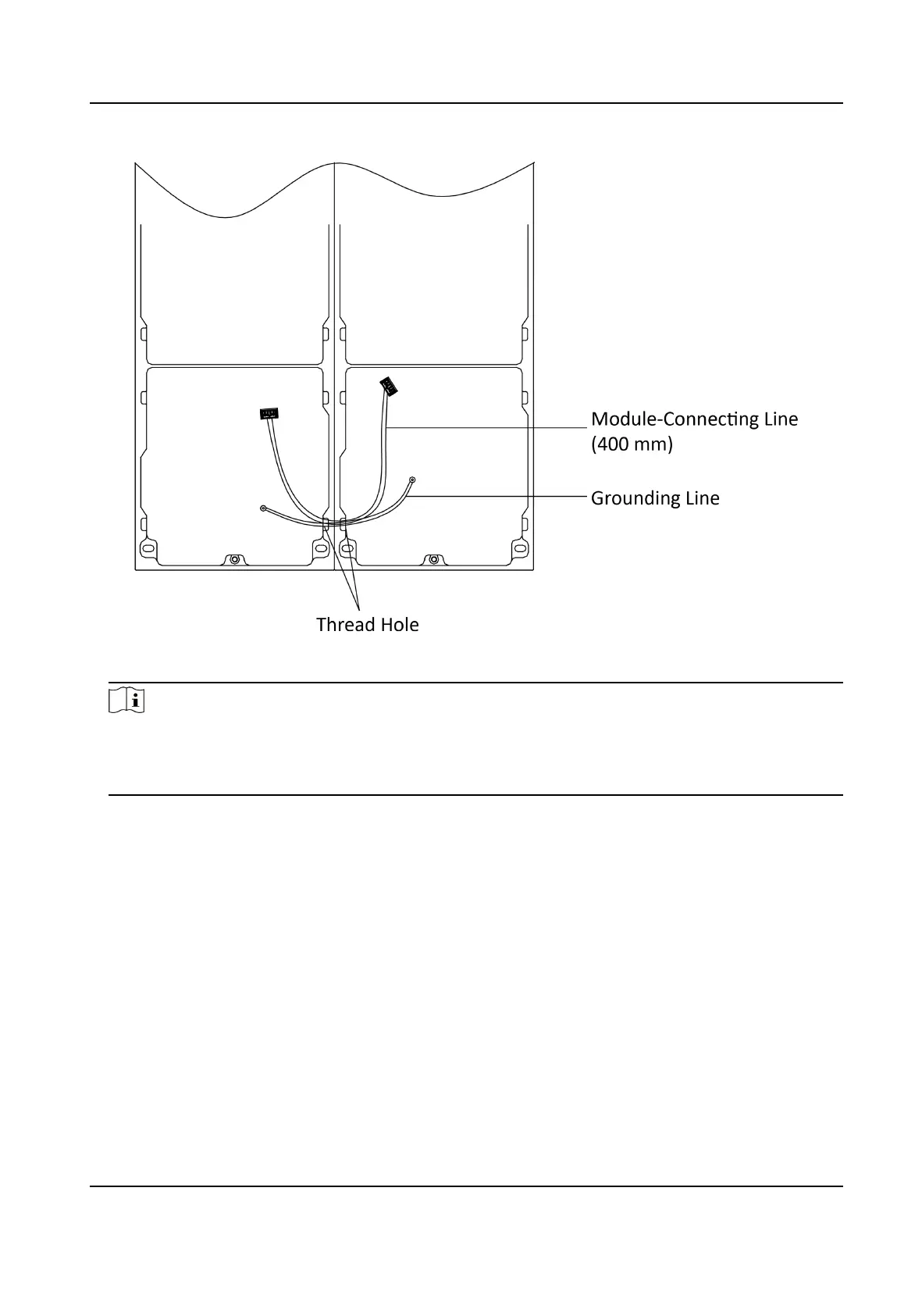

Figure 4-45 Place the Grounding Line and Module-Connecng Line
Note
●
There are 6 module-connecng lines in the package: 190 mm × 4 and 400 mm × 2.
●
Take the 400 mm module-connecng line for this step.
●
The green-yellow line in the package is for grounding.
6.
Fix the mounng frame onto the wall with 8 expansion bolts.
DS-KD8003 Series Module Door Staon User Manual
56
