HIKVISION DS-KD8003 Series User Manual

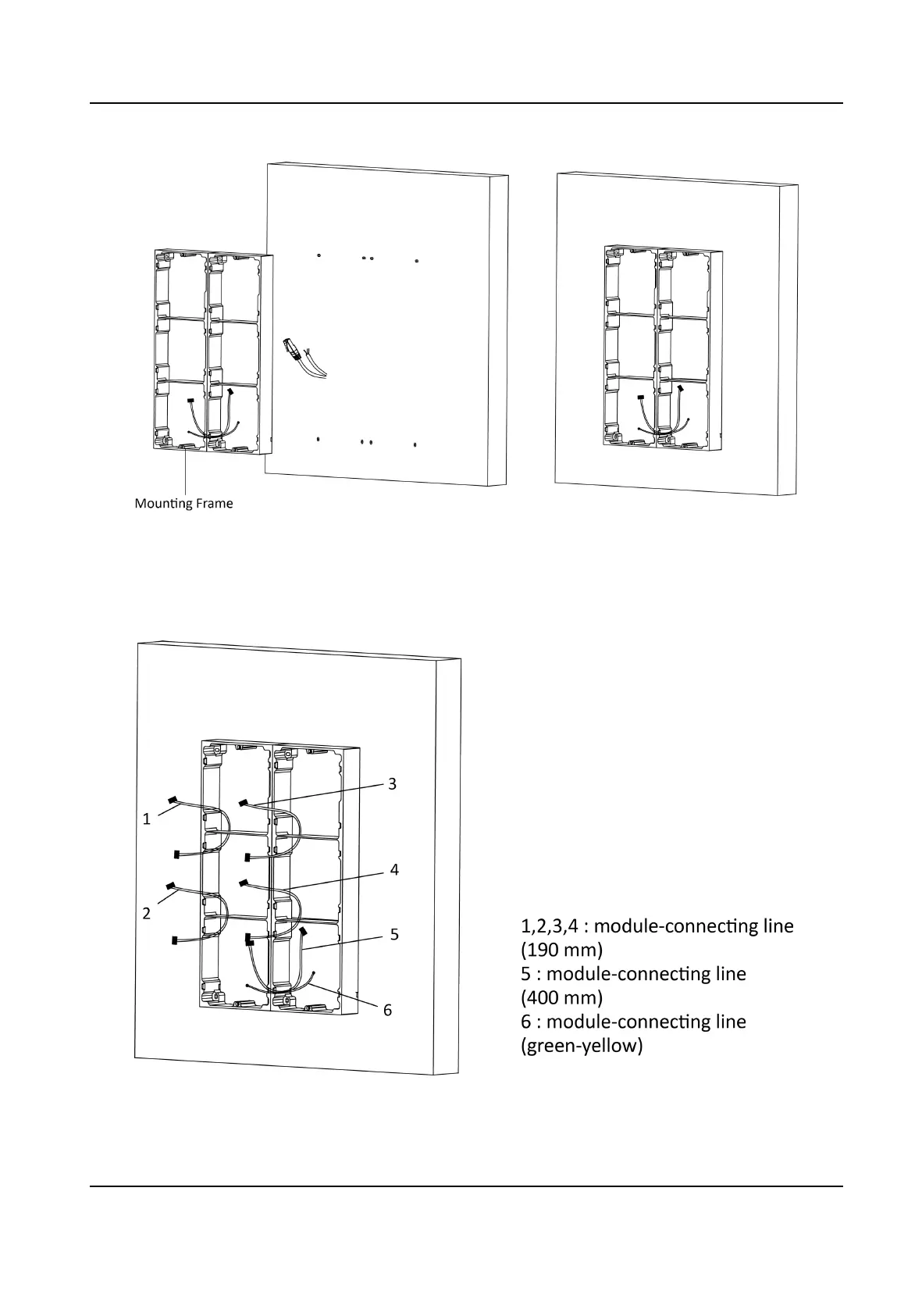

Figure 4-46 Fix the Mounng Frame
7.
Pass the main unit connecng line across the thread hole to the top grid of the le frame.
Thread the module-connecng line (190 mm) across the thread hole of the frame. The lines
should be placed as shown below.
Figure 4-47 Placement of Lines
DS-KD8003 Series Module Door Staon User Manual
57
