4.1 Gang Box

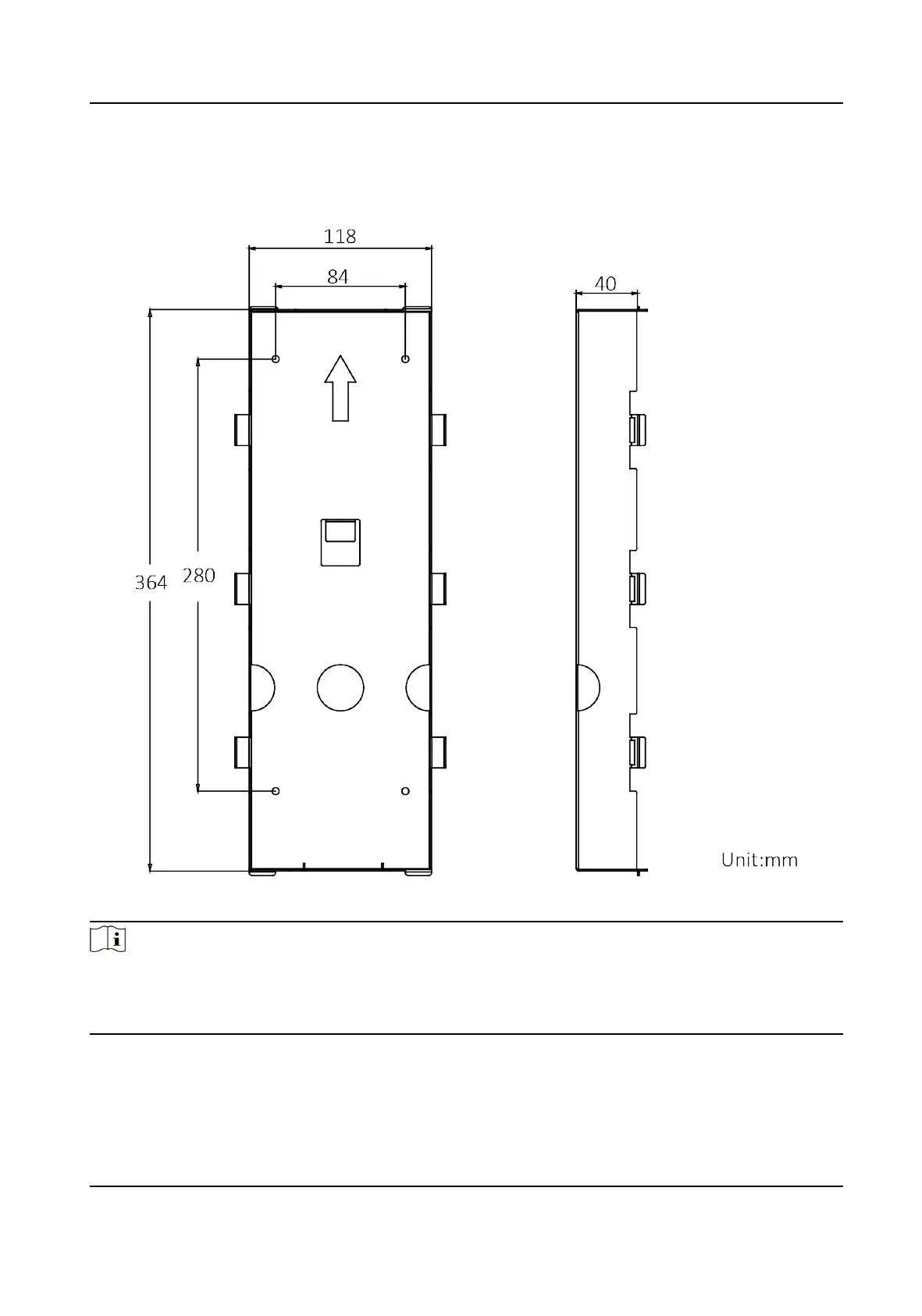

Figure 4-1 Dimension of the Gang Box
Note
●
The dimension of the gang box is 364 mm (W) × 118 mm (H) × 40 mm (D).
●
The installaon hole should be bigger than the actual size. The suggested dimension of the
installaon hole is 364.3 mm (W) × 118.6 mm (H) × 40.2 mm (D).
Video Intercom Face Recognion Door Staon User Manual
