Rail Network Video Recorder User Manual
15

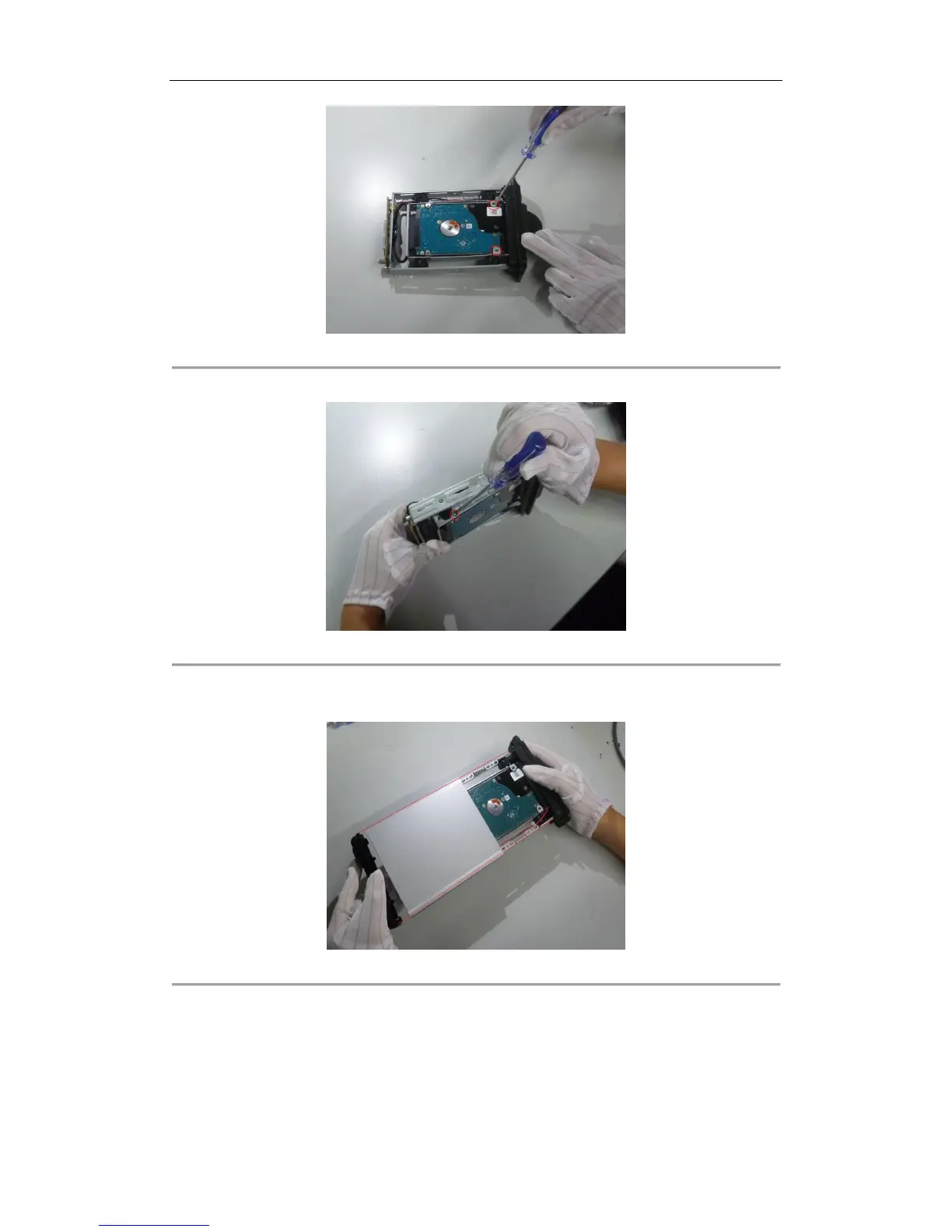

Figure 1. 13 Fix HDDs
9. Tighten the 4 set screws on the side of the HDD box, shown as the following figure.
Figure 1. 14 Fix HDDs
10. Align the protective cover of the HDD box with the line marked in the figure, and assemble the whole HDD
box.
Figure 1. 15 Assemble HDD Box
11. Tighten the two set screws of the hard disk box, as shown in the figure.
