Rail Network Video Recorder User Manual
16

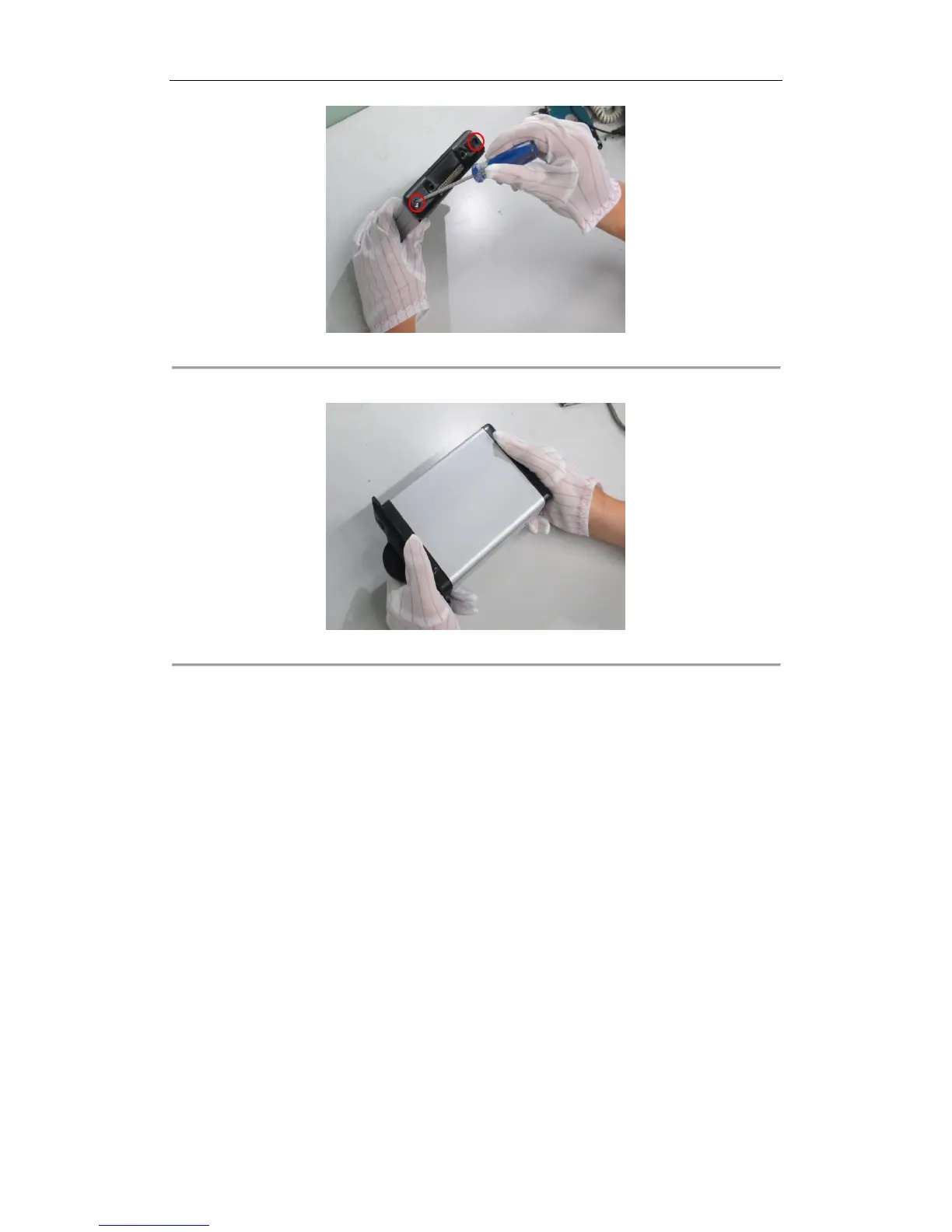

Figure 1. 16 Tighten Screws
12. Insert the HDD box back to the Rail NVR, and then tighten the screws clockwise.
Figure 1. 17 Insert HDD Disk Back to Rail NVR
1.4 Wiring
Purpose:
Wire and install your Rail NVR according to the following requirements.
Power supply
Rail NVR should connect with power supply which should be 110 VDC.
Network connection
LAN 2 is connected to a network switcher.
IP Camera
Make sure network communication between IP cameras to be added and your Rail NVR is well.
Video and audio output
If you want to operate Rail NVR via CVBS displayer, connect the A OUT and V OUT to a CVBS displayer.
If you want to operate Rail NVR via VGA displayer, before you start Rail NVR, connect the Rail NVR to
a VGA displayer via a VGA cable.
HDD
Install at least one HDD into the Rail NVR. For detailed steps, refer to 1.3 HDD Installation.
Mouse
Connect a mouse to one of the USB interface.
