Network Traffic Camera • User Manual
59
4) Select I/O No. When the coil detects that there is vehicle passing, a rising or falling
edge signal is sent to the linked I/O of the capture unit to trigger capture.
The I/O Trigger Default Status and linked I/O No. should be configured according to the actual
conditions.

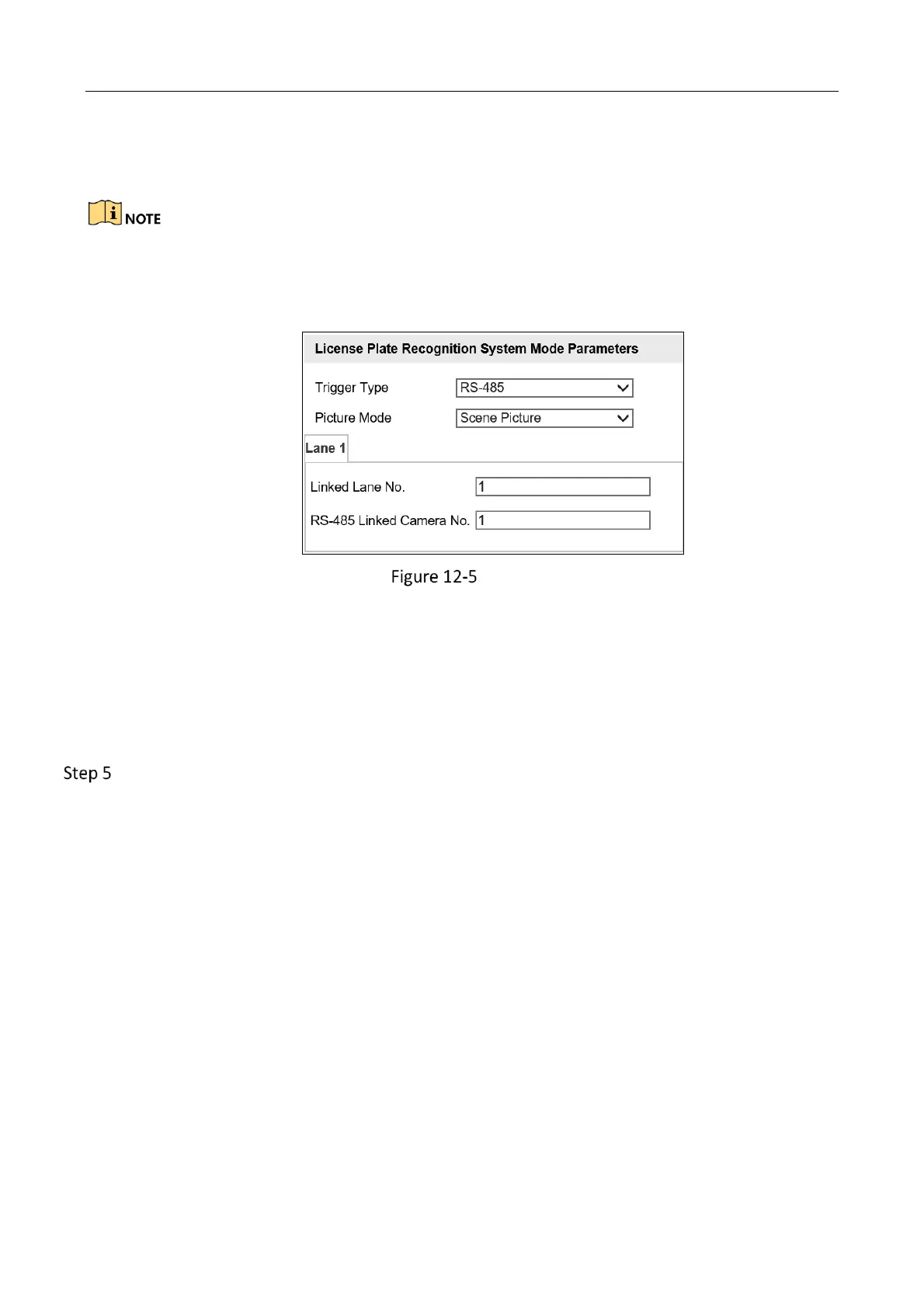

RS-485
RS-485
1) Select Picture Mode. Scene Picture and Scene Picture + Close-up Picture are
selectable.
2) Enter the Linked Lane No. ranging from 1 to 99. The lane No. will be overlaid on the
captured picture.
3) Enter RS-485 Linked Camera No. ranging from 1 to 16. The No. refers to the RS-485
serial port connected channel No. of the vehicle detector.
Draw rules line.
1) Click Draw Rules Line.
2) Check Lane Line, Lane Right Border Line, and Trigger Line.
3) Adjust the position and length of the lines.
To Next Page
