4.2 Control Panel, Foot End
Chapter 4: Removal, Replacement, and Adjustment Procedures
4
Hill-Rom® Basic Care™ Bed, Hill-Rom® 305 Manual Bed, Page 4 - 5
Hill-Rom® 405 Electric Bed Service Manual (MAN336 REV 2)
4.2 Control Panel, Foot End
Tools required: Phillips head screwdriver
Wire cutters
Removal
SHOCK HAZARD:
Disconnect the bed from its power source. Failure to do so could cause
injury or equipment damage.
1. Disconnect the bed from its power source.
2. Make a note to show how the cable routes from the foot end control panel
(A) to the control box assembly (B) (see figure 4-2 on page 4-5).

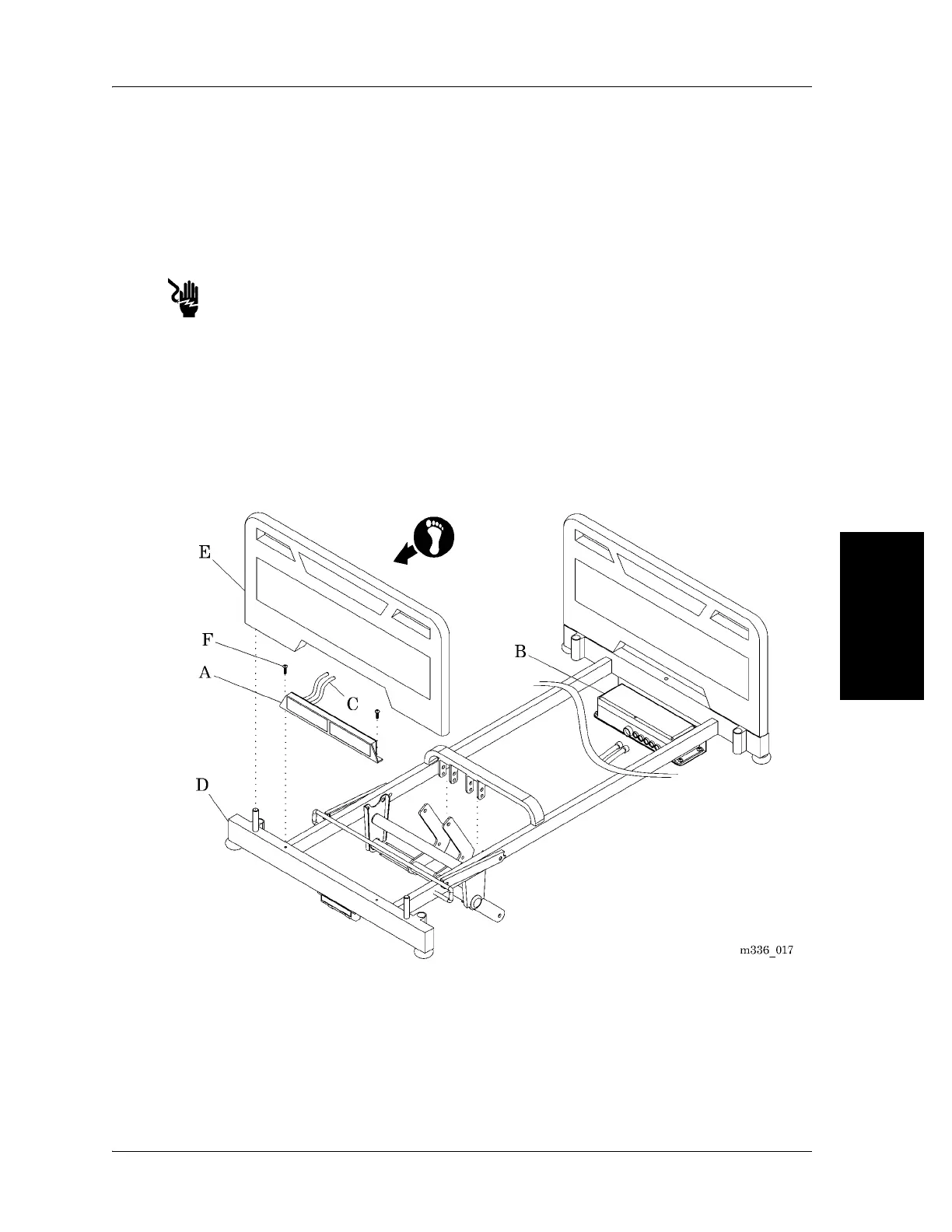

Figure 4-2. Foot End Control Panel Assembly
