Features
TotalCare® Bariatric Bed and TotalCare® Bariatric Plus Therapy System 11
User Manual (143434 REV 8)
If the bed system is in the chair or chair egress position and the brake is not engaged, the Chair Position Indicator
flashes and an alarm sounds. If the bed system is in the chair egress position and the footboard is installed, the Chair
position indicator flashes and an alarm sounds.

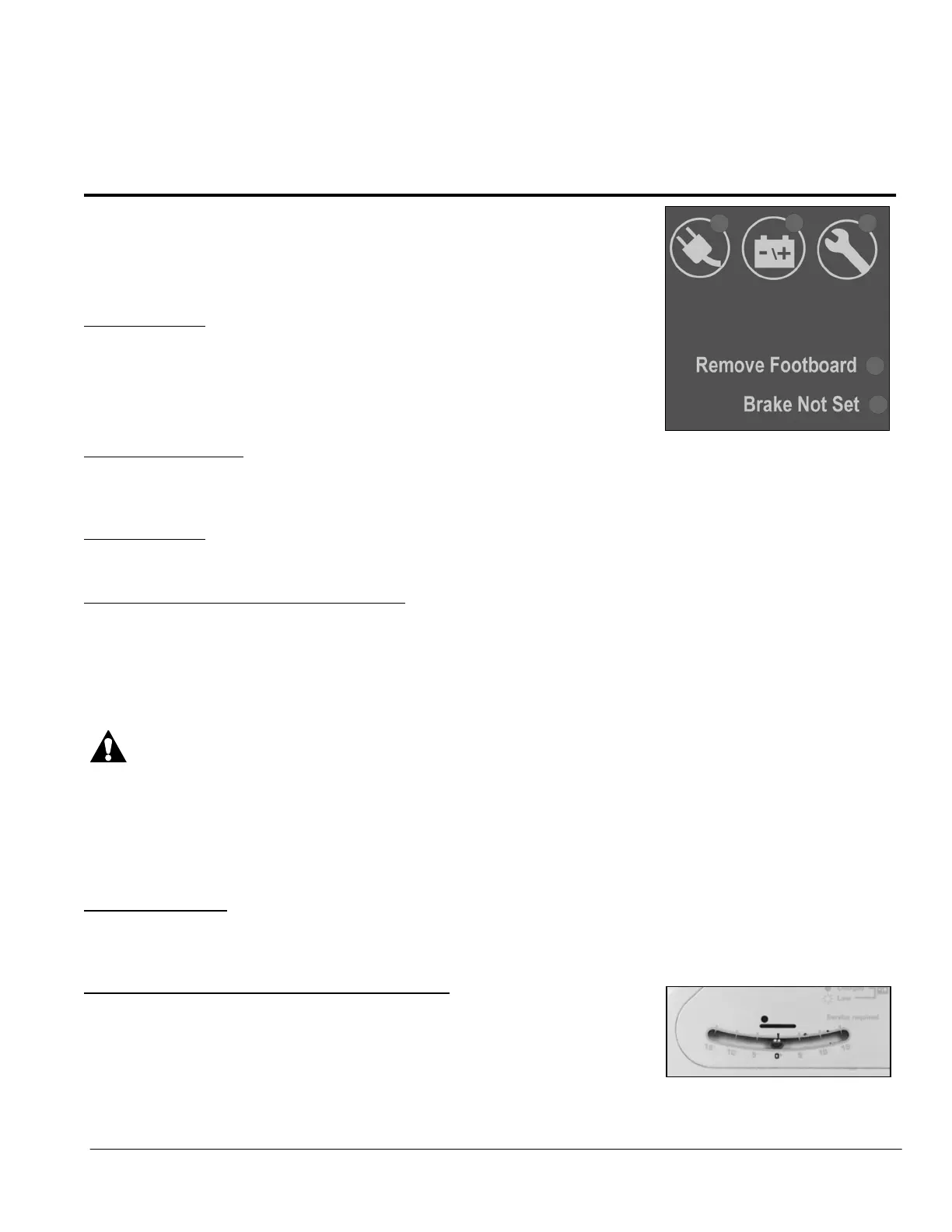

Safety and Information Indicators (Model P1840B)
Safety and Information Indicators provide the caregiver with visual and audio
indications about brake status, chair position, remove footboard alarm, AC power,
bed exit alarm, and battery status.
Brake Not Set
If the brake is not engaged, the brake not set indicator flashes. An alarm will sound
when the bed is plugged in and the brake is not set.
If the system is in the chair or chair egress positions and the brake is not engaged,
the brake not set indicator flashes and an alarm sounds.
Remove Footboard
If the bed system is in the chair egress position and the footboard is installed, the Remove Footboard indicator flashes
and an alarm sounds.
Unplugged AC
The Unplugged AC indicator flashes when the AC power cord is disconnected and a battery is present.
Battery Power (Manual Control Option)
Charged—The Charged indicator comes on when the battery is charged.
Low—The Low indicator flashes when the battery is low. An intermittent tone sounds every two minutes when the
battery reaches the low condition and the power cord is disconnected.
Off—If indicators are off, the battery is too low to operate the bed.
CAUTION:
Although a fully-charged battery is preferred, transport may be done when the battery
charge is low. The bed should be reconnected to AC power as soon as possible. Equipment
damage can occur.
If the Battery Indicator changes from Charged to Low consistently within four hours of being disconnected from AC
power, replace the battery.
Service Required
The Service required indicator flashes when the system detects a malfunction. Refer to the TotalCare® Bariatric Bed
and TotalCare® Bariatric Plus Therapy System Service Manual (143435).
Line-of-Site® Trendelenburg Angle Indicator
The Line-of-Site® Trendelenburg Angle Indicator mechanically indicates
up to 15° of Trendelenburg and 15° of Reverse Trendelenburg in 5°
increments. The degree number where the indicator ball rests is the
correct Trendelenburg angle with respect to the floor.
