Hillyard TRIDENT T26SC PLUS - Page 27

4.5.1-31 4.5.1-32
4.5.1-33
4.5.1-34 4.5.1-35

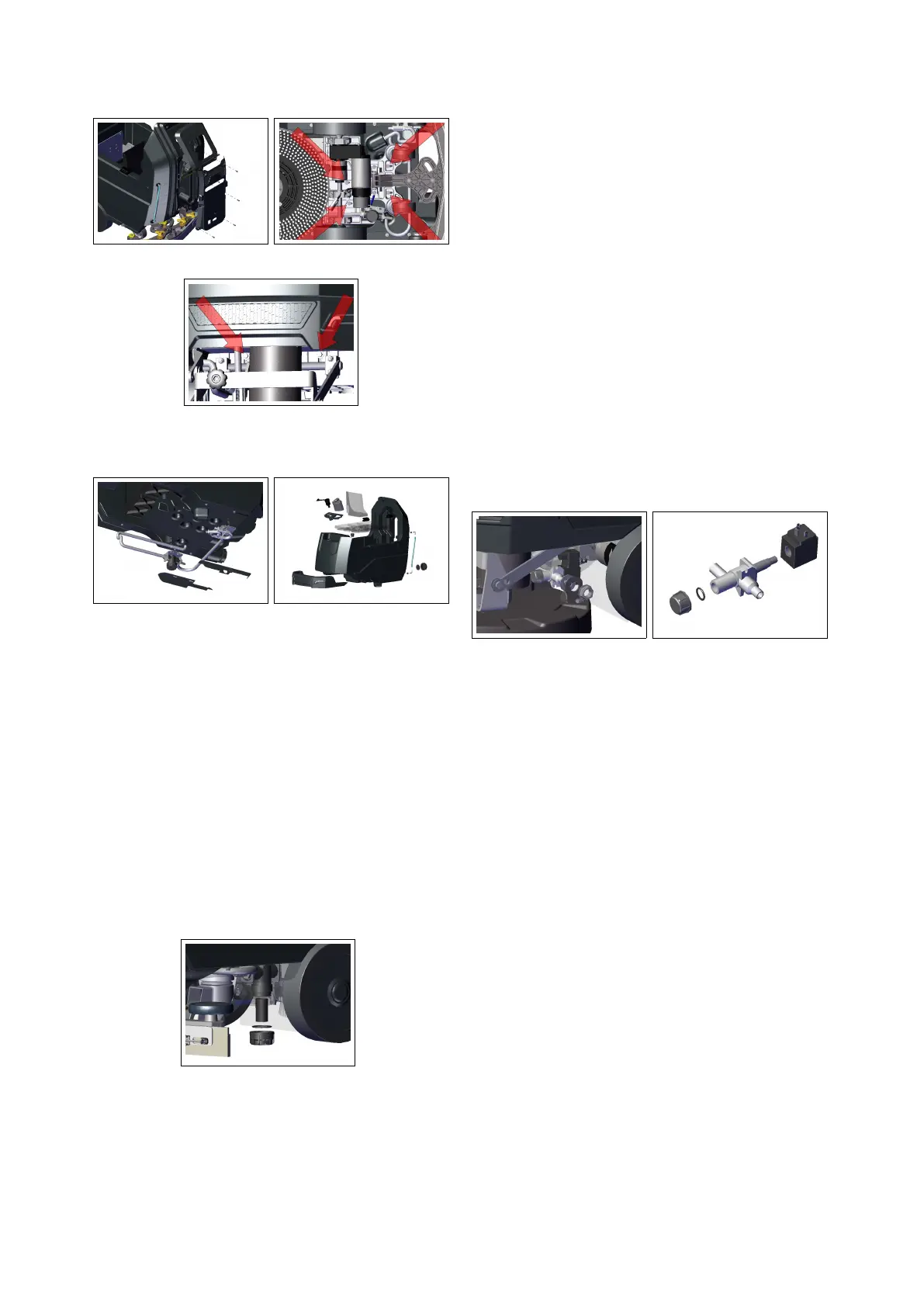

4.5.2 Solution Filter
• Put the machine in safe conditions.
• Loose the filter and remove it from
its housing (see fig. 4.5.2-36).
• Slip off the OR gasket from the filter
paying attention to not damage it.
• Proceed at reverse to refit the part.
4.5.2-36
4.5.3 Solenoid Valve
• Put the machine in safe conditions.
• Disconnect the rubber hoses and the
electrical connector connected to the
solenoid valve and unscrew the ring
nut to remove the solenoid valve (see
fig. 4.5.3-37).
• If necessary, remove the coil screw
and remove it (see fig. 4.5.3-38).
• Proceed at reverse to refit the part
(Position the spacer washer properly
to refit the valve to the brush deck
body).
4.5.3-37 4.5.3-38
27
