English 17
1. Stand the tool on its grip.
2. Press the magazine release button (red button) on the magazine and allow the magazine to slide down.
3. Rotate the base plate in a counter clockwise direction, until the connection is released.
4. Lift off the base plate.

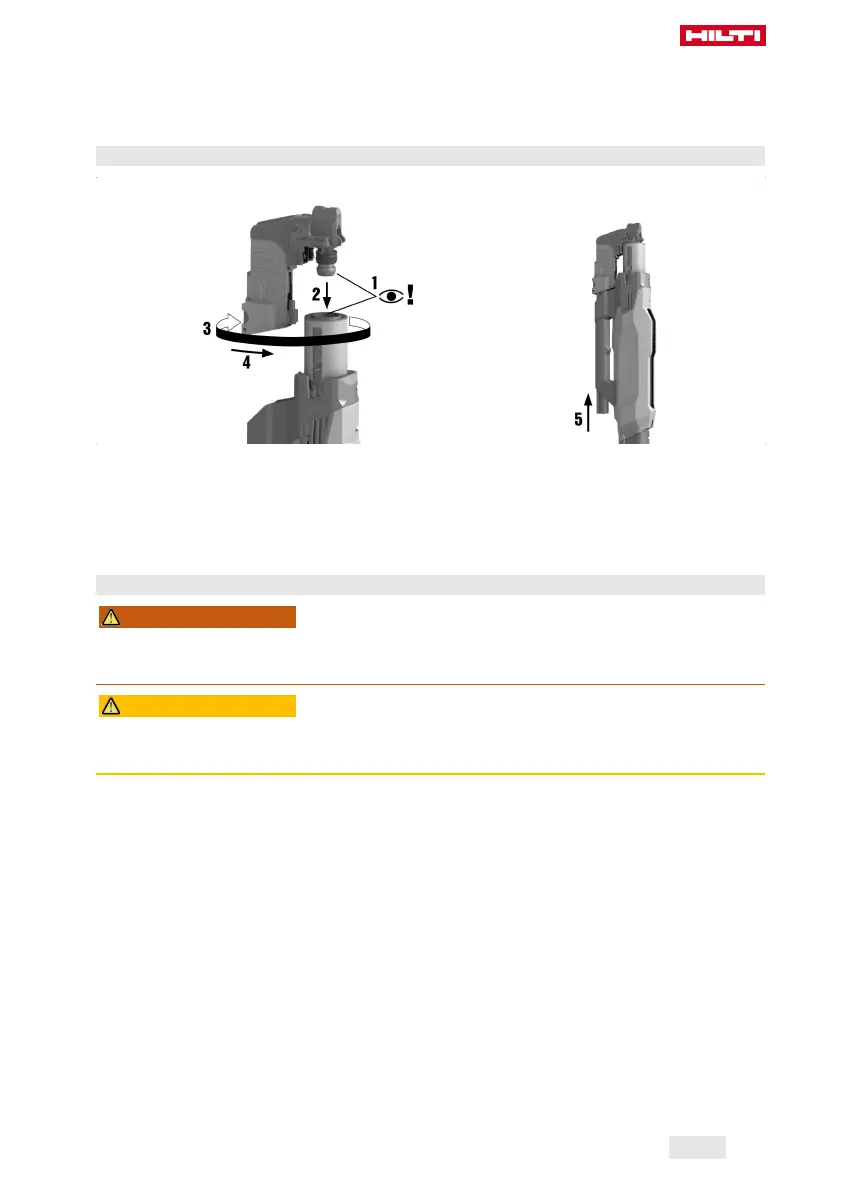

6.3 Fitting the base plate
1. Make sure that the piston stopper is correctly fitted in the base plate and that the piston guide and the
piston are correctly seated in the tool.
2. Press the base plate against the thread.
3. Rotate the base plate in a clockwise direction as far as it will go.
4. Rotate the base plate back slightly until it is in its starting position relative to the magazine.
5. Push the magazine back until it engages with the base plate.
6.4 Cleaning the fastening tool
WARNING
Risk of injury! Cartridges in the tool could fire (explode).
▶ Check that all cartridges have been removed from the tool before carrying out the following tasks with
the tool.
CAUTION
Risk of burns! Parts of the tool may be very hot after the tool has been in use.
▶ If it is necessary to carry out maintenance without first allowing the tool to cool down, it is essential that
protective gloves are worn.
1. Disassemble the base plate. → page 16
Printed: 30.04.2019 | Doc-Nr: PUB / 5491711 / 000 / 00
